Settla LED chandelier

描述

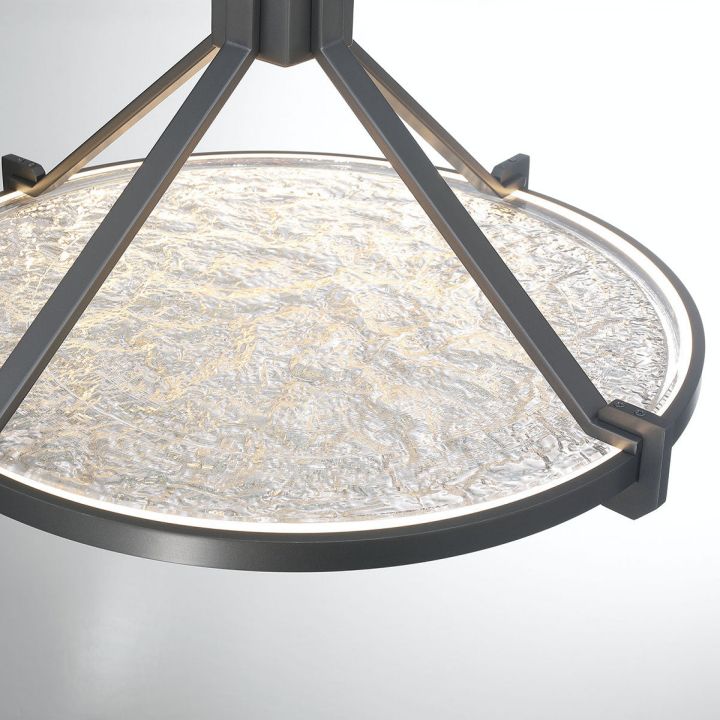

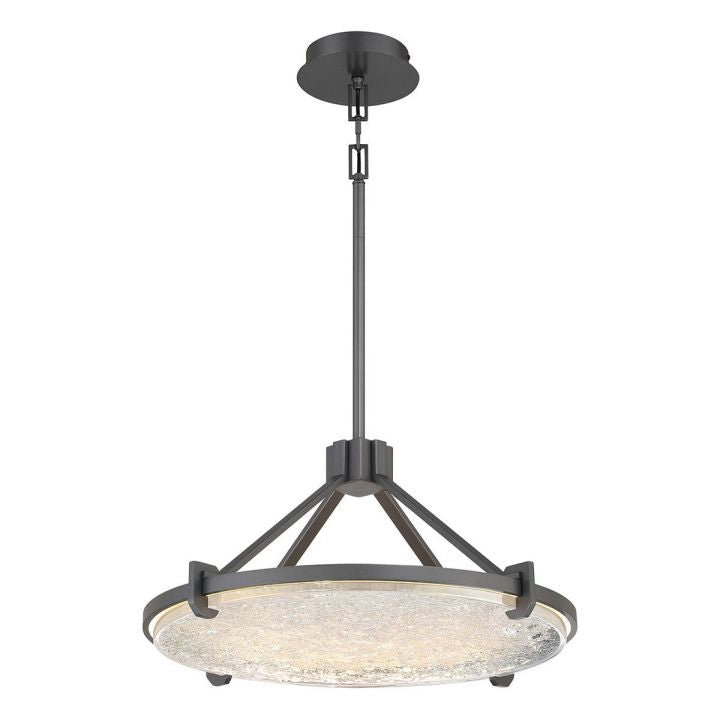

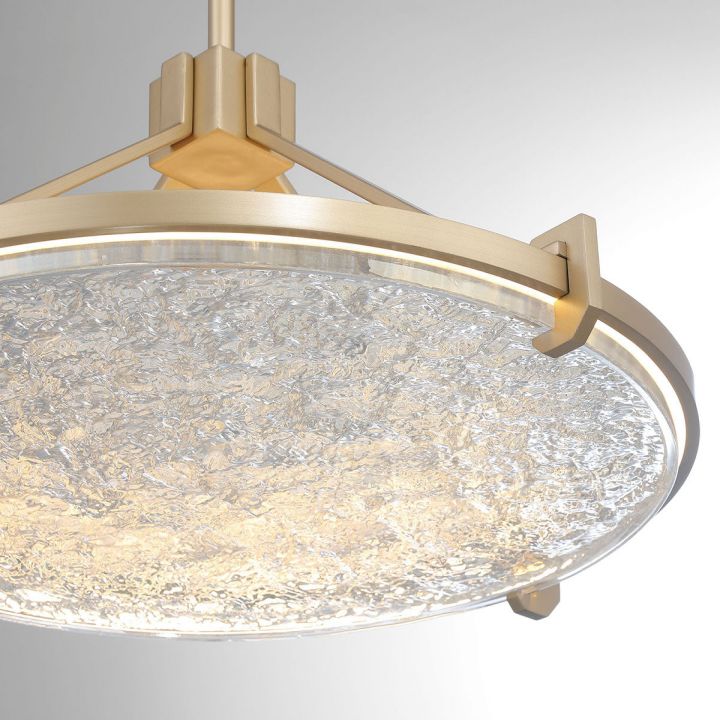

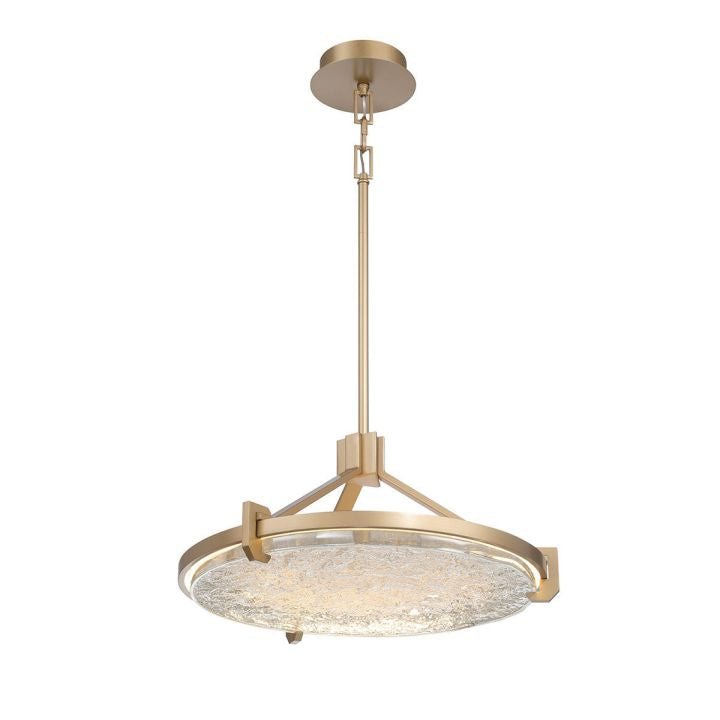

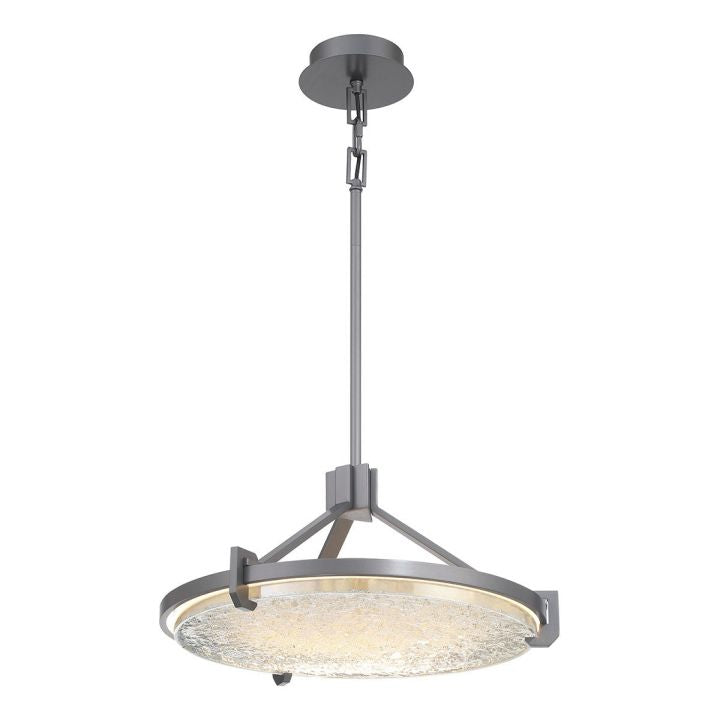

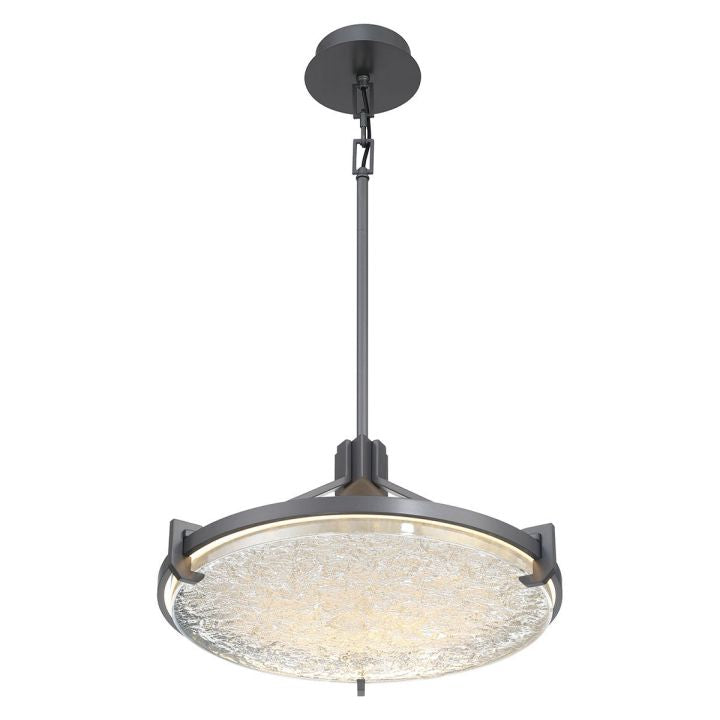

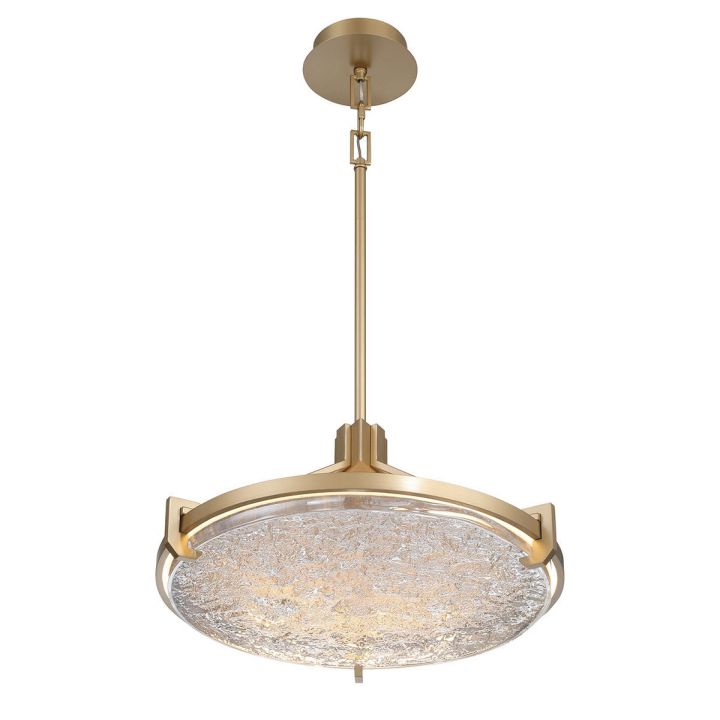

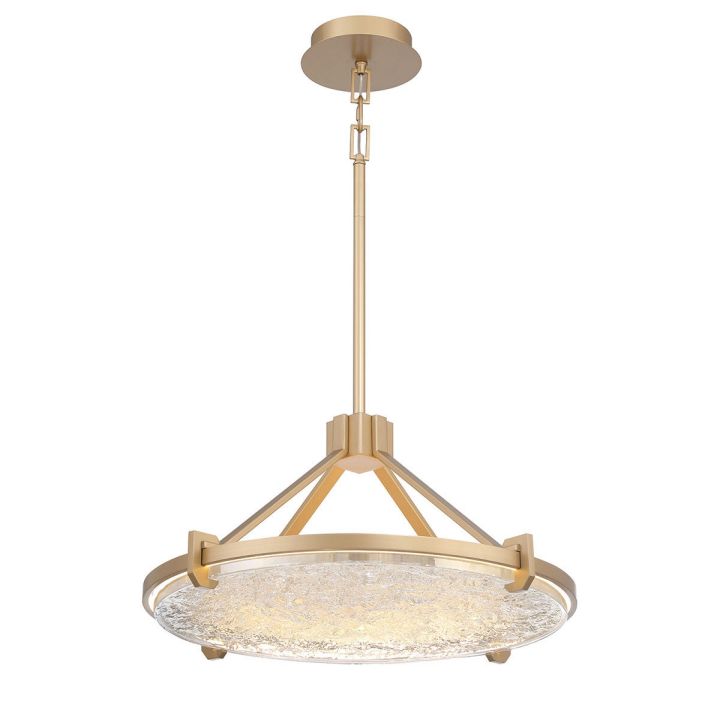

The Settla LED Chandelier frames a broad disc of textured clear glass within an open metal structure. Angled supports rise from the circular rim to a central hub, contrasting the glass’s irregular surface with clean, geometric lines. Integrated LED lighting highlights the texture across the disc and defines its illuminated edge. Available in Small 23" and Large 27" versions, Settla offers two proportions in Brushed Gold or Brushed Gunmetal. The smaller version has a 22½-inch fixture diameter, while the larger version measures 26½ inches, allowing the design to be scaled to a dining table, breakfast area, or centered seating arrangement.

Dimensions

Small 23" Chandelier

• Fixture Body: 22½" diam. × 9¼"H
• Glass Disc: 19¾" diam. × 1½"H
• Minimum Overall Hanging Height: 10¾"
• Maximum Overall Hanging Height: 67¾"
• Approximate Product Weight: 42.3 lbs.

Large 27" Chandelier

• Fixture Body: 26½" diam. × 11½"H
• Glass Disc: 23¾" diam. × 1½"H
• Minimum Overall Hanging Height: 13¼"
• Maximum Overall Hanging Height: 70"
• Approximate Product Weight: 57.7 lbs.

Shared Canopy & Suspension Dimensions

• Canopy: 8¼" diam. × 1½"H
• Included Extension Rods: One 3", one 6", one 12", and two 18" sections
• Electrical Wire Length: 96"

The 23" and 27" size names identify the two available versions; exact fixture-body dimensions are listed above. Overall hanging height is measured from the ceiling to the lowest point of the fixture and varies with the selected suspension configuration. Product weights are approximate and exclude packaging.

Product Details

Light Source

• Fixture Type: Round glass chandelier
• Light Source: Integrated LED
• Number of Light Sources: 1
• Integrated LED Included: Yes
• Color Temperature: 3000K warm white
• Color Rendering Index: CRI 90

Lighting by Size

Small 23" Total Wattage: 40W Small 23" Rated Delivered Light Output: 1,490 lumens Large 27" Total Wattage: 48W Large 27" Rated Delivered Light Output: 1,610 lumens

Electrical & Controls

• Dimmable: Yes
• Input Voltage: 120V
• Power Type: Hardwired
• Location Rating: Indoor dry locations
• Assembly Required: Yes

Materials & Construction

• Frame Material: Metal
• Shade Material: Textured glass
• Glass Color: Clear
• Finish Options: Brushed Gold, Brushed Gunmetal
• Suspension: Metal extension rods with connecting links

The glass disc sits within a circular rim and is secured by visible retaining fittings. Sloping arms connect the rim to the central hub, leaving the space above the glass open rather than enclosing it beneath a solid shade. The brushed metal finish provides a smooth contrast to the glass texture. Viewed from below, the broad glass surface becomes the main decorative feature; from the side, the angled supports define the fixture’s profile.

Application

Position Settla above a round dining or breakfast table, or use it to center a defined living-room seating area. Choose between the two sizes by comparing the actual fixture diameter with the furniture below and the surrounding clearances. Plan the installed drop around ceiling height, seated sightlines, and nearby cabinetry. The fixture-body height is separate from the complete hanging height, and the extension rods allow the suspension to be configured during installation.

Shipping & Warranty

• Warranty: 3-Year Limited Warranty
• Shipping: Free Shipping on All Orders

For current availability, shipping options, and a project-specific delivery window, please contact our XYlight Support Team.

Installation & Notes

• Professional Installation: This fixture is hardwired and must be installed by a licensed electrician in accordance with applicable local electrical codes.
• Hanging Height: Select the required rod combination before installation, keeping the complete installed drop within the maximum overall hanging height specified for the chosen size.
• Structural Support: Both sizes require appropriate structural ceiling support independent of the electrical junction box. Have the installer verify the anchoring arrangement for the complete installed load.
• LED Dimming: Use a compatible LED wall dimmer matched to the supplied driver and connected load.
• Ceiling Conditions: For sloped or vaulted ceilings, coordinate the ceiling angle and mounting arrangement with our XYlight Support Team before ordering.
• Glass Assembly: Support the glass disc throughout assembly and secure all retaining fittings according to the supplied instructions. Do not lift or move the fixture by the glass.

The textured glass may display variations in its surface pattern and appearance. Switch off the electrical supply and allow the fixture to cool before cleaning. Dust the glass, metalwork, and suspension hardware gently with a soft, dry cloth. Avoid abrasive cleaners and harsh chemicals, and do not spray cleaning products directly onto the fixture, retaining fittings, or LED components. Need Design Guidance? Our XYlight Support Team can help with size selection, table and room proportions, finish coordination, rod selection, overall hanging height, LED controls, and structural-support planning.
