Ralen Linear Chandelier

描述

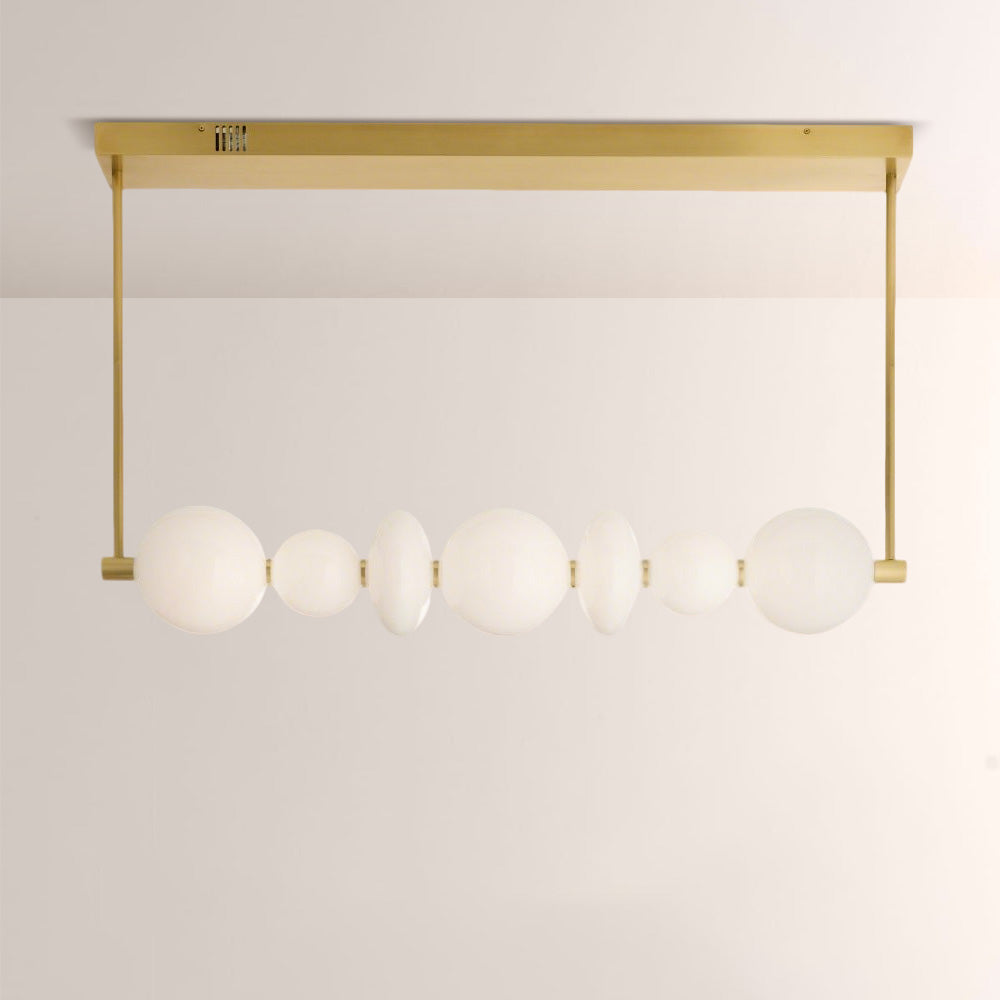

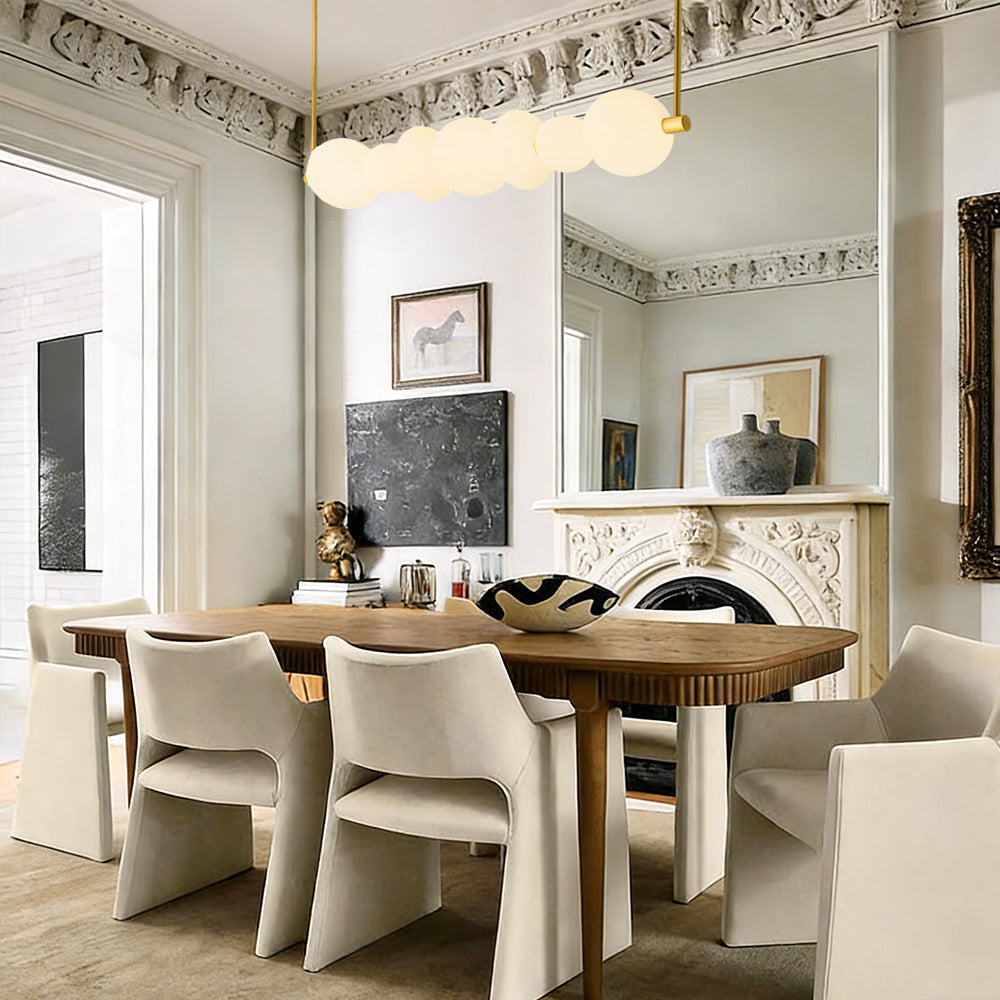

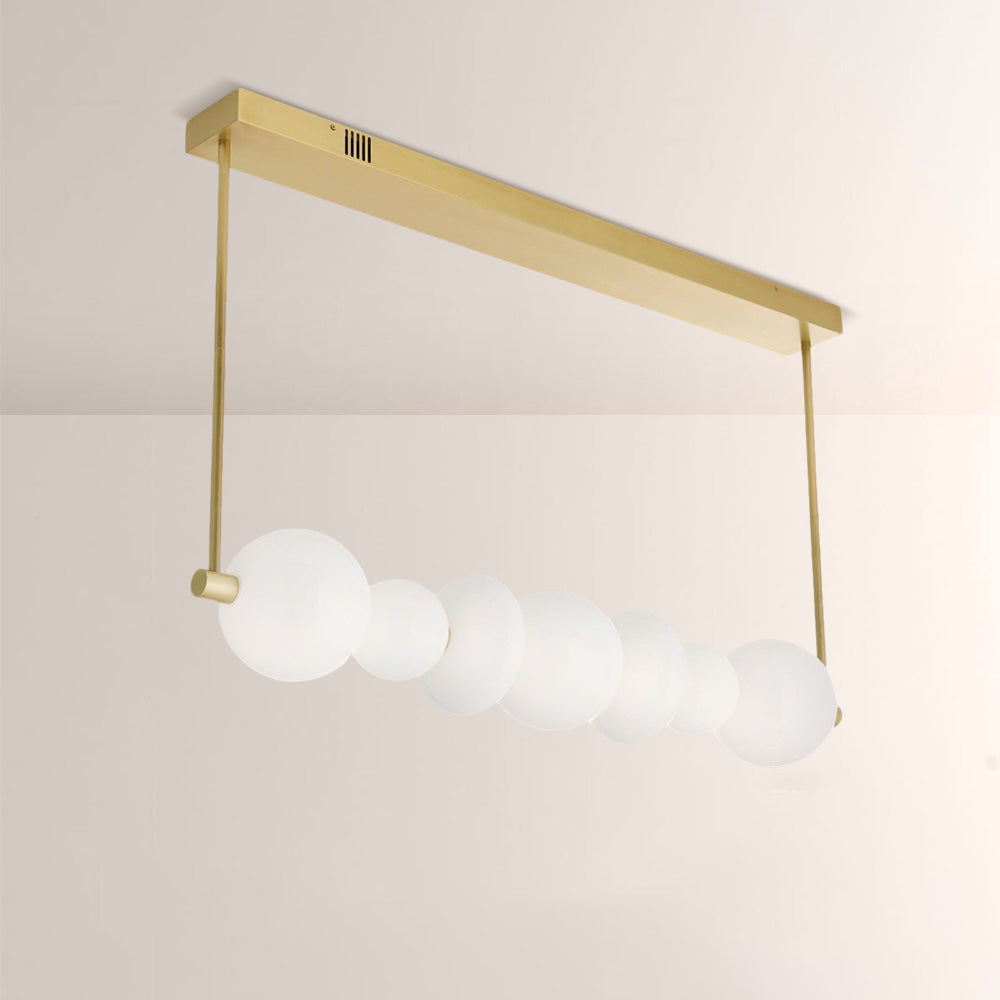

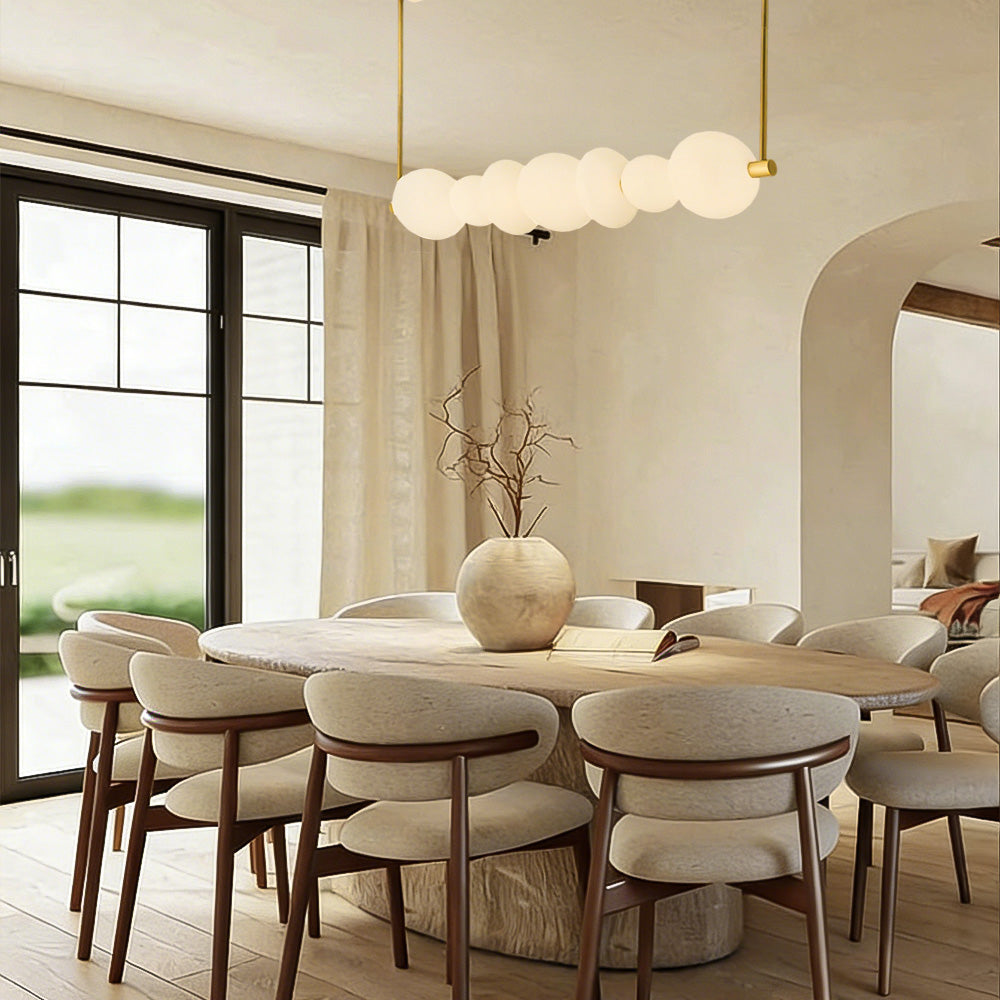

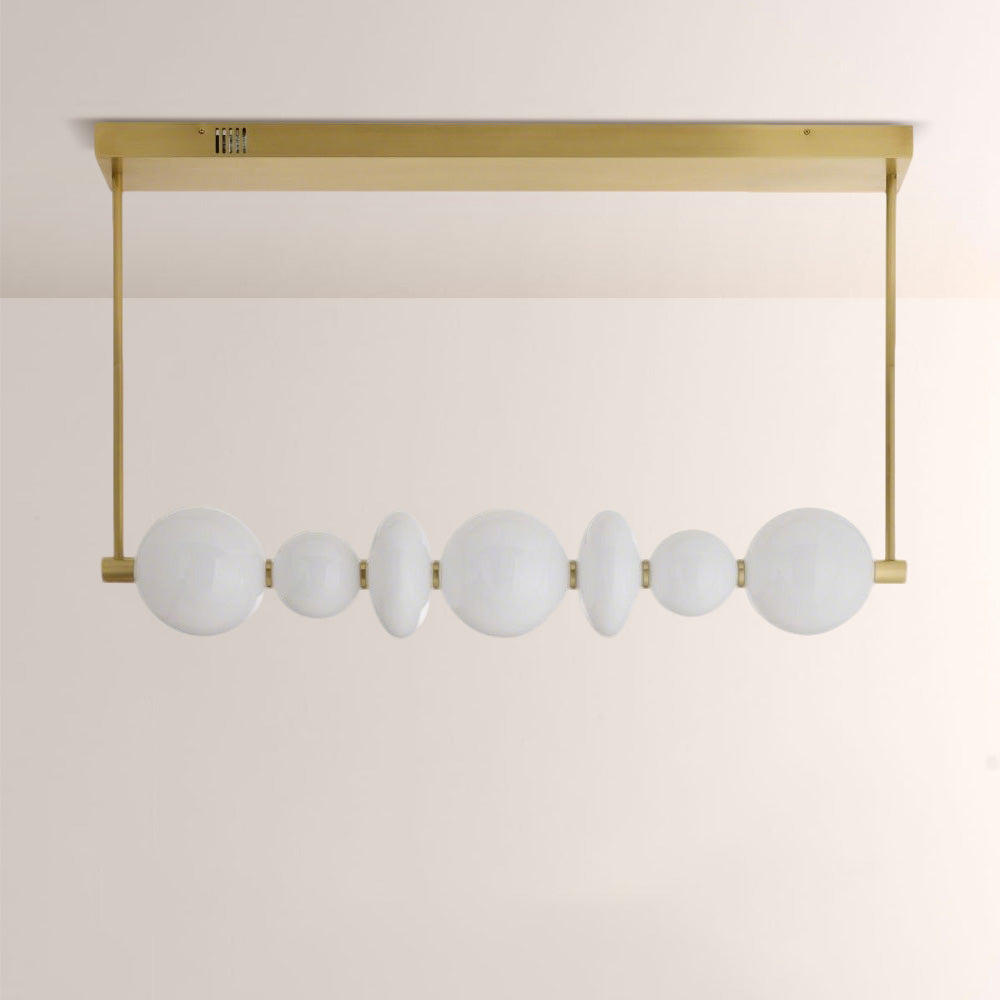

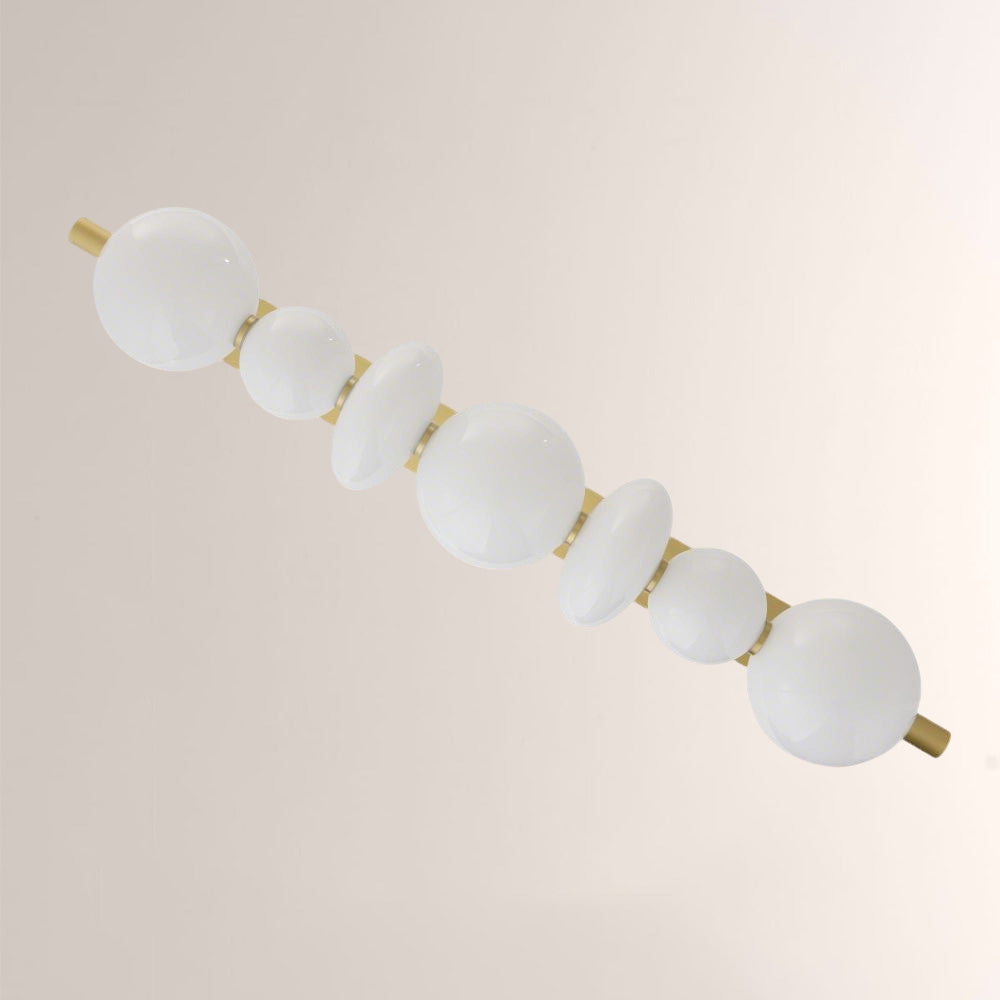

The Ralen Linear Chandelier pairs a sculptural arrangement of opal glass forms with a slender antique brass-finished frame. Rounded glass elements in varying sizes surround a white acrylic diffuser, creating a softly illuminated horizontal composition with layered texture and balanced proportions. At 48 inches wide, Ralen brings a defined lighting presence above dining tables, kitchen islands, and conference tables. Two suspension rods and an elongated rectangular canopy complement the linear silhouette, while interchangeable rod sections allow the hanging height to be configured for the space.

Dimensions

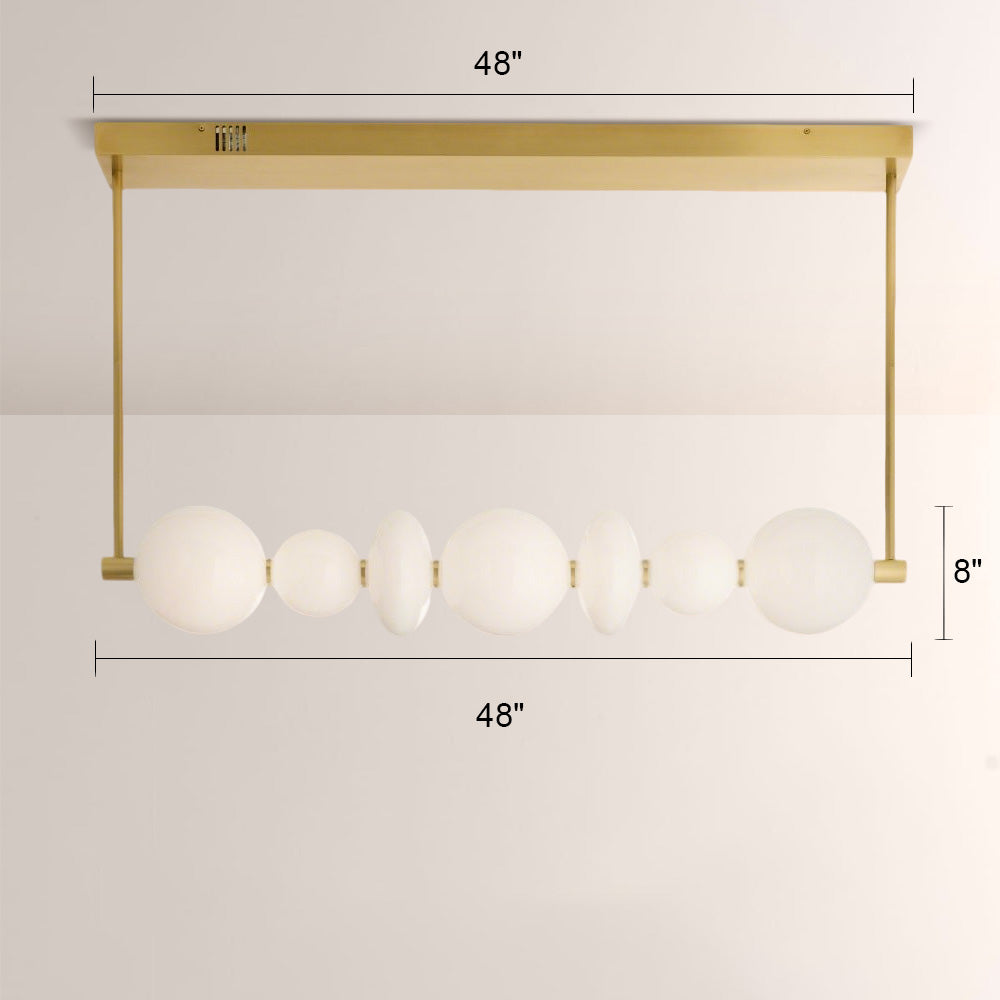

• Chandelier Body: 48"W × 8"D × 8"H
• Minimum Overall Hanging Height: 16"
• Maximum Overall Hanging Height: 44"
• Canopy: 48"W × 5"D × 2"H
• Included Suspension Rods: Two 4", two 6", and four 12" rods
• Cord Length: 10 ft.
• Approximate Product Weight: 23 lbs.

Product Details

• Product Type: Linear Chandelier
• Light Source: Integrated LED
• Integrated LED Included: Yes
• Color Temperature: 3000K Warm White
• Dimmable: Yes, with a compatible 0–10V dimmer
• Voltage: 110–120V standard for the US and Canada; 220–240V configuration available by request before ordering
• Power Type: Hardwired
• Installation Environment: Indoor dry locations
• Sloped-Ceiling Compatible: No, with the standard mounting configuration
• Assembly Required: Yes
• Professional Installation Required: Yes
• Warranty: 3-Year Limited Warranty

Materials & Construction

• Frame Material: Steel
• Frame Finish: Antique Brass
• Glass Elements: Opal Glass
• Diffuser: White Acrylic

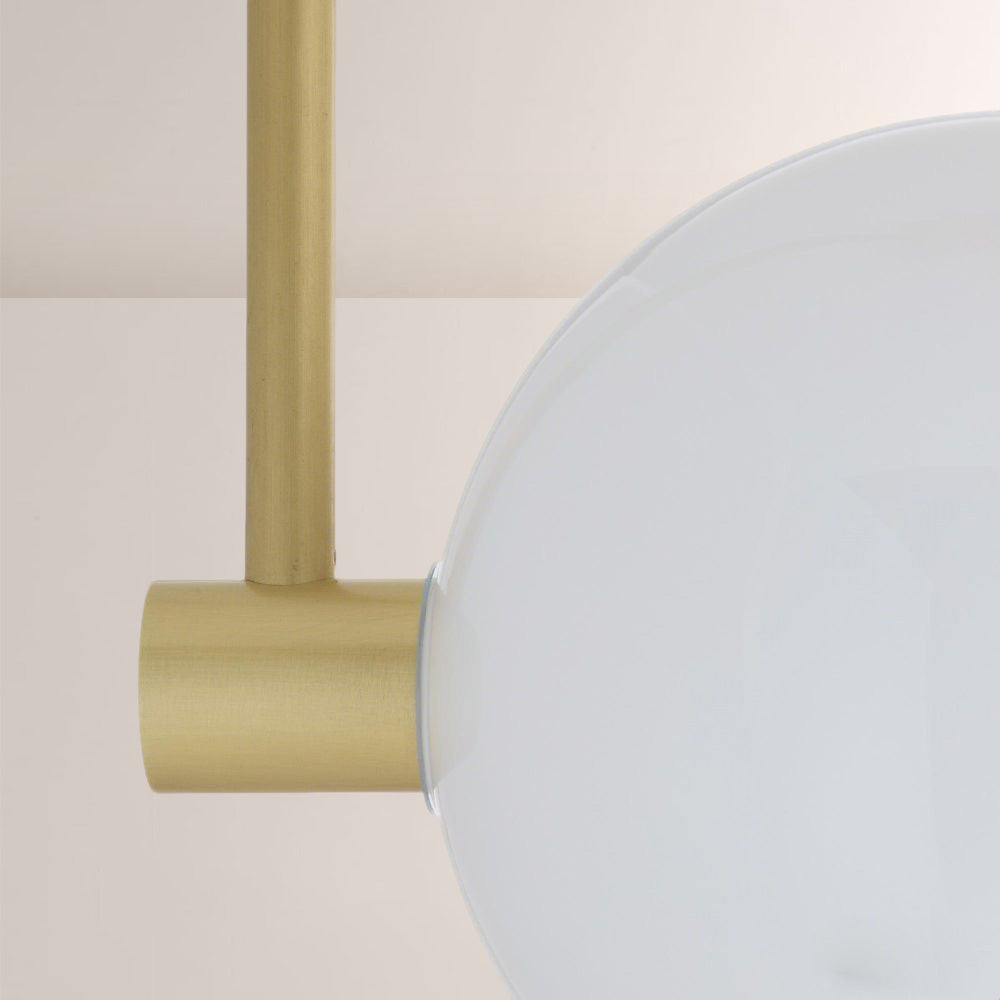

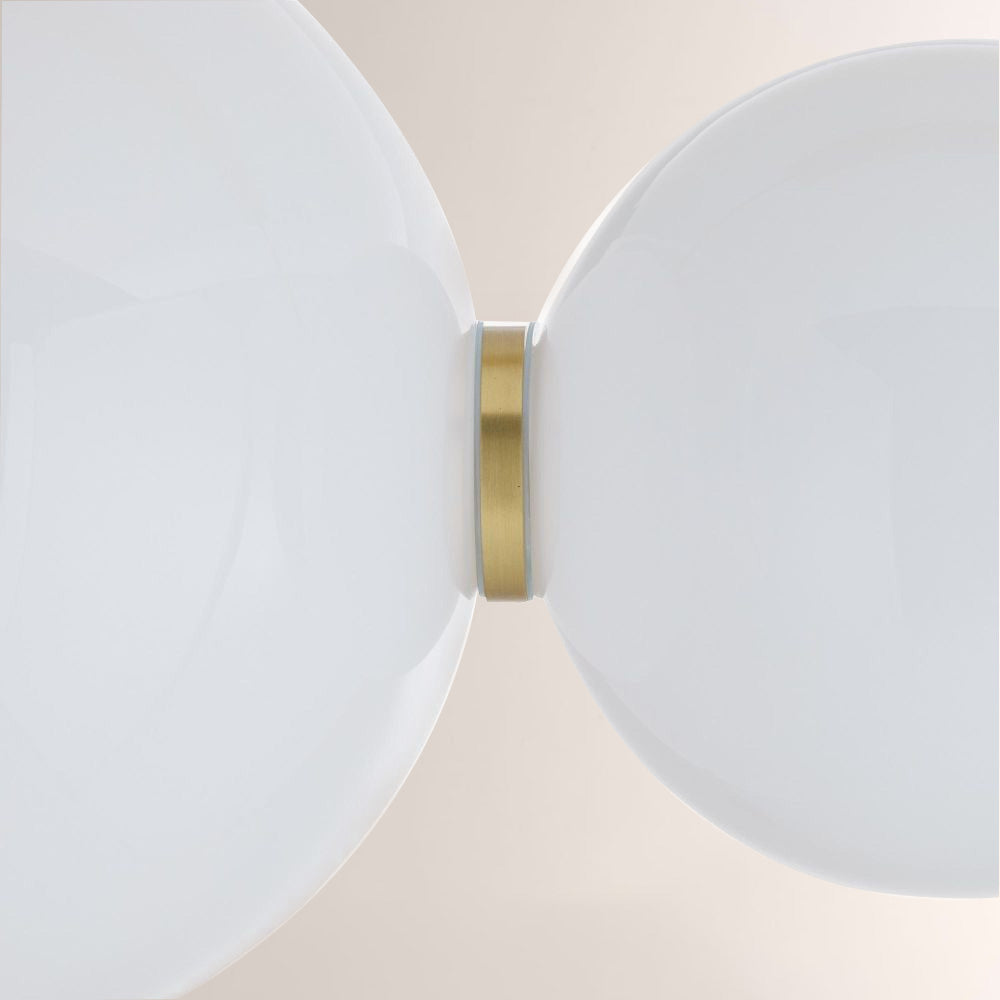

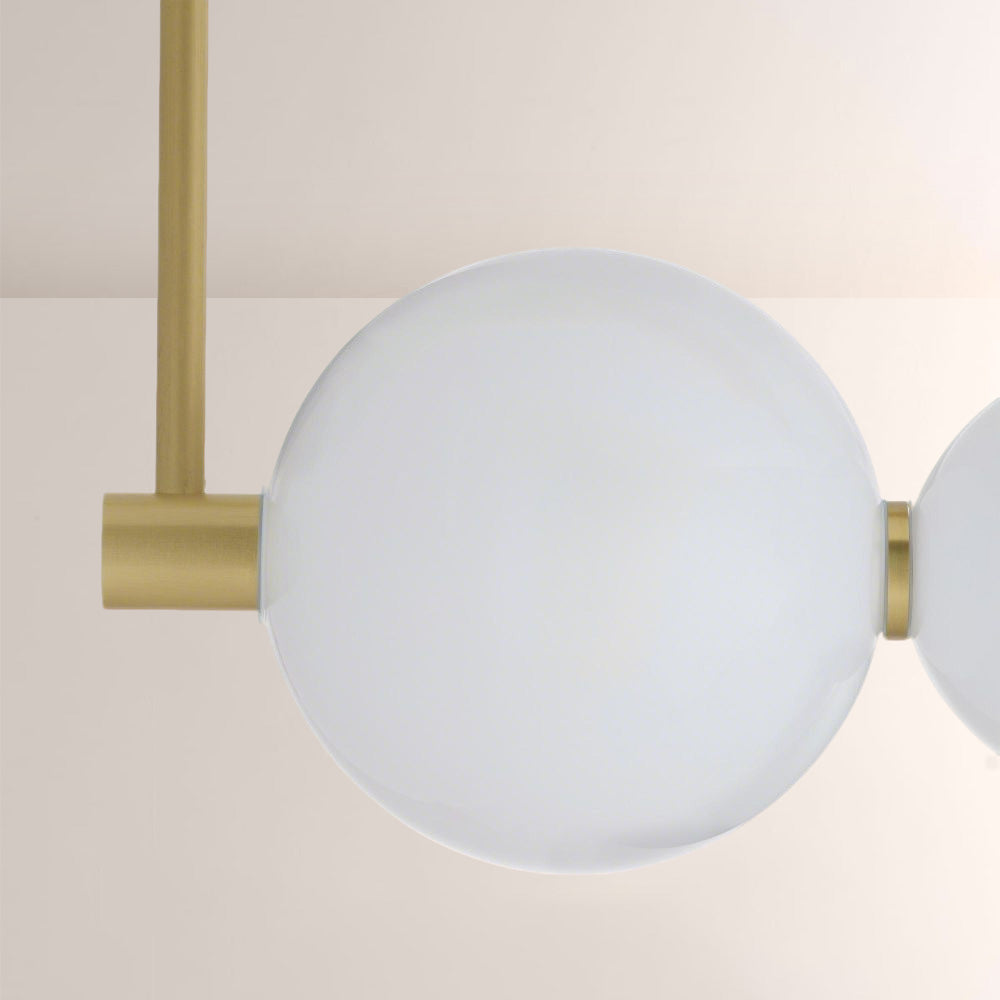

The opal glass elements surround a linear acrylic diffuser that softens the integrated LED illumination. Short metal connections separate the rounded forms, introducing a measured rhythm along the fixture. Antique brass-plated steel supports the glass composition and coordinates with the twin suspension rods and rectangular canopy.

Installation & Care

• Professional Installation: Installation by a licensed electrician is required. Confirm that the ceiling structure, junction box, and mounting points can support the completed fixture.
• Hanging Height: Select the appropriate combination of supplied rods before installation. Rod sections provide fixed height increments, rather than continuous adjustment.
• Ceiling Conditions: The standard mounting configuration requires a flat ceiling. Contact the XYlight Support Team before ordering for any sloped-ceiling, vaulted-ceiling, or custom-drop requirements.
• Dimming: Use a compatible 0–10V control. Your electrician must provide the control wiring required by the supplied driver; a conventional household dimmer is not automatically compatible.
• Care: Disconnect power and allow the fixture to cool before cleaning. Gently wipe with a soft, dry cloth. Avoid chemicals, household cleaners, abrasive materials, and pressure on the glass.

Notes

The integrated LED system is included; separate screw-in bulbs are not required. Overall hanging height includes the canopy, suspension, and chandelier body. Cord length does not represent the installed hanging height. Need Design Guidance? Our XYlight Support Team can help confirm the appropriate size, finish, hanging height, dimming requirements, and project-specific installation details for your space.

• Email: service@xinyuelight.com
