Cudor Linear LED Chandelier

描述

The Cudor Linear LED Chandelier suspends softly rounded alabaster shades beneath a rectangular metal canopy. Integrated LEDs illuminate the stone from within, revealing natural veining and variations in translucency. Slender cords and elongated metal fittings keep the supporting structure visually light, allowing the illuminated shades to define the composition. The five-light version forms a single row, while the eight- and fourteen-light versions distribute the pendants across broader rectangular layouts. Antique Brass, Matte Black, and Custom Polished Nickel finishes offer different contrasts against the pale stone, with adjustable drops for a level arrangement or a layered cascade.

Dimensions

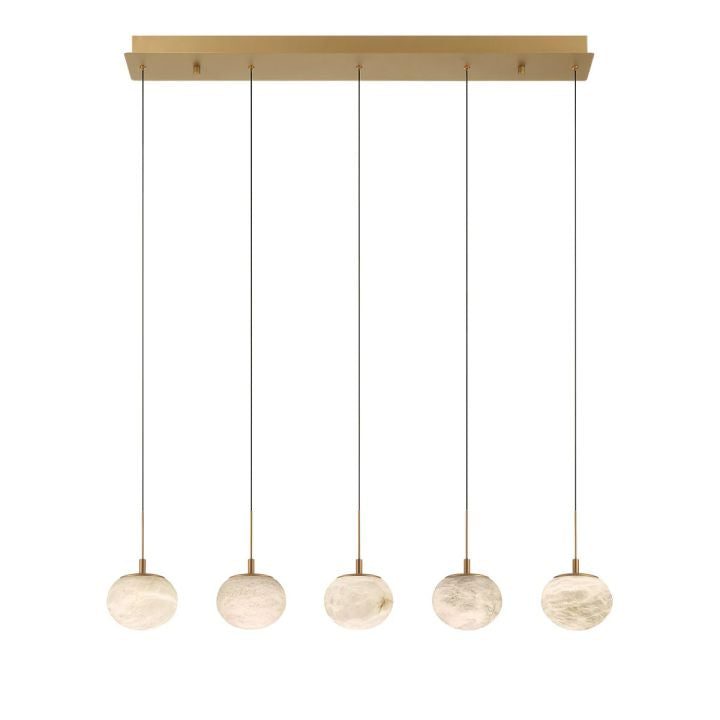

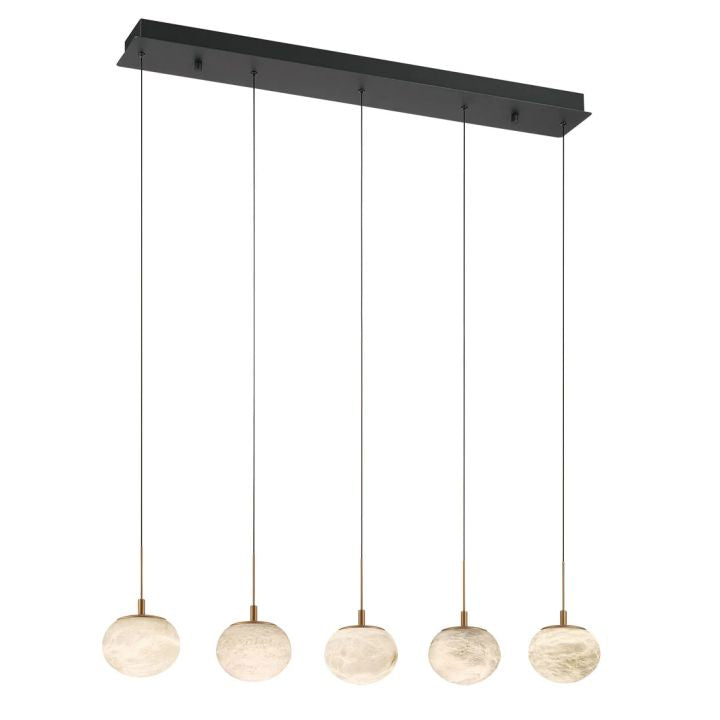

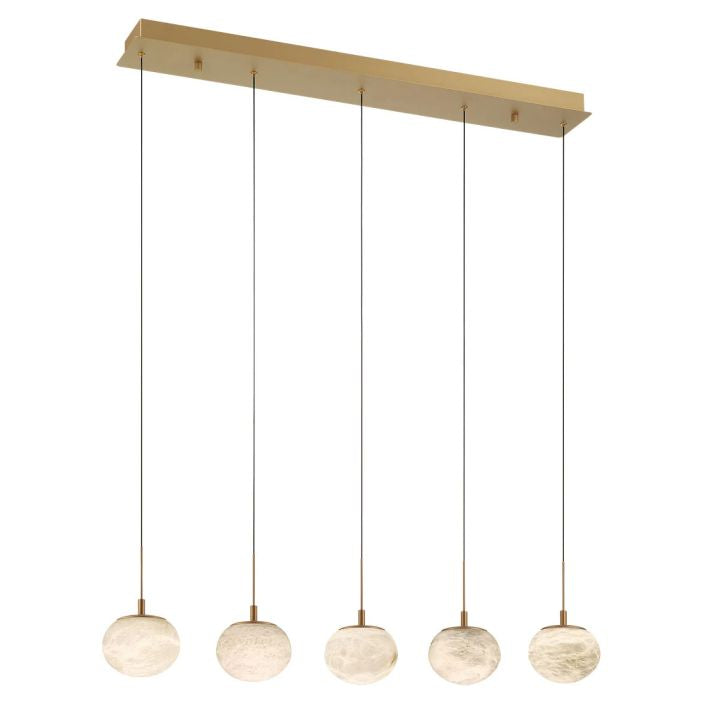

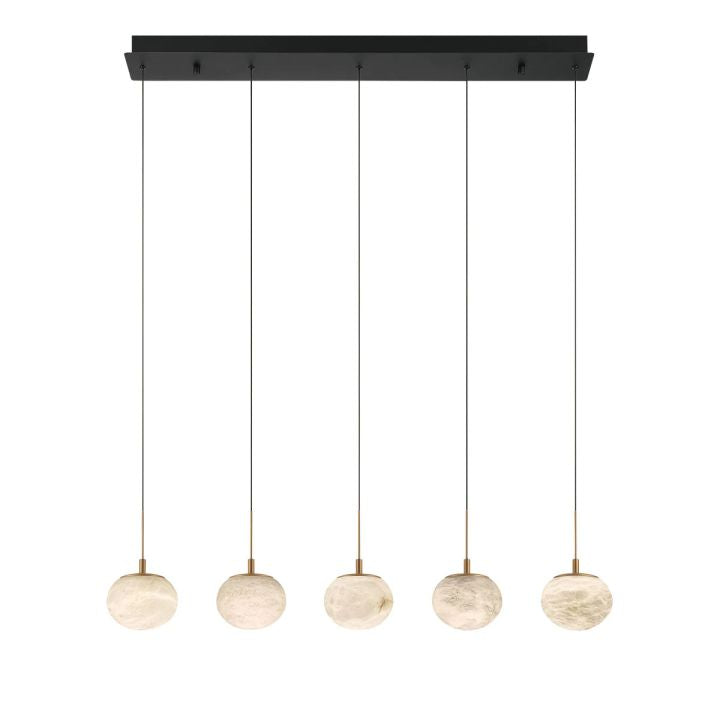

5-Light Chandelier

• Canopy: 41¼"L × 6"W × 1¾"H
• Maximum Overall Hanging Height: 153"
• Suspension Cord Length: 144"
• Approximate Product Weight: 24.24 lbs.

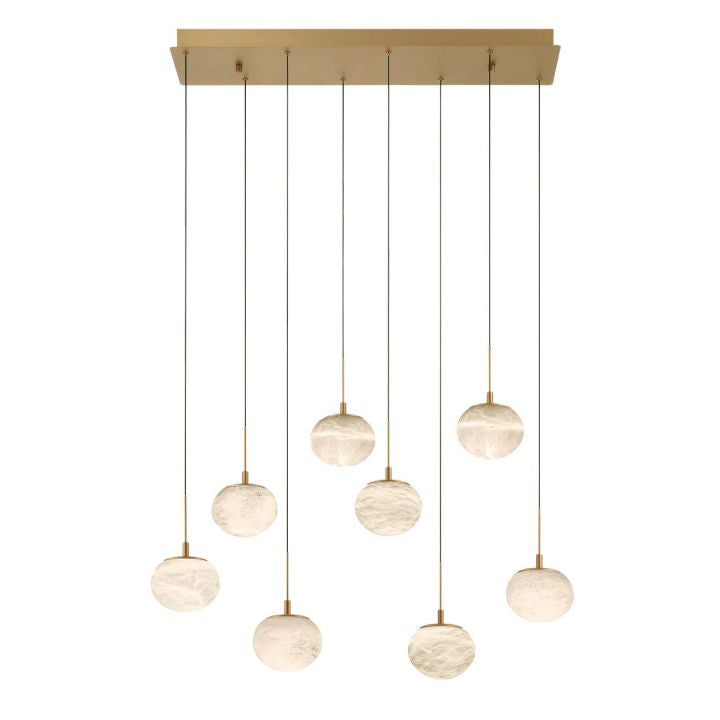

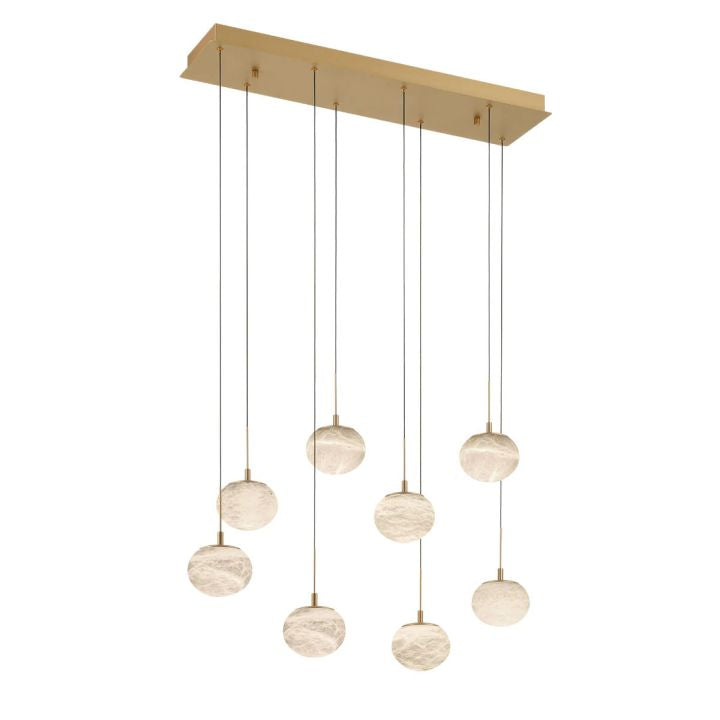

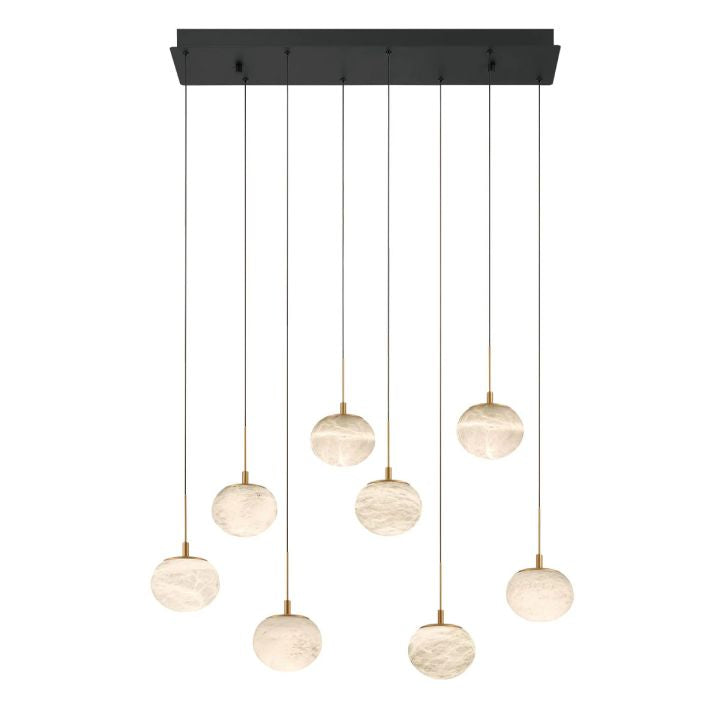

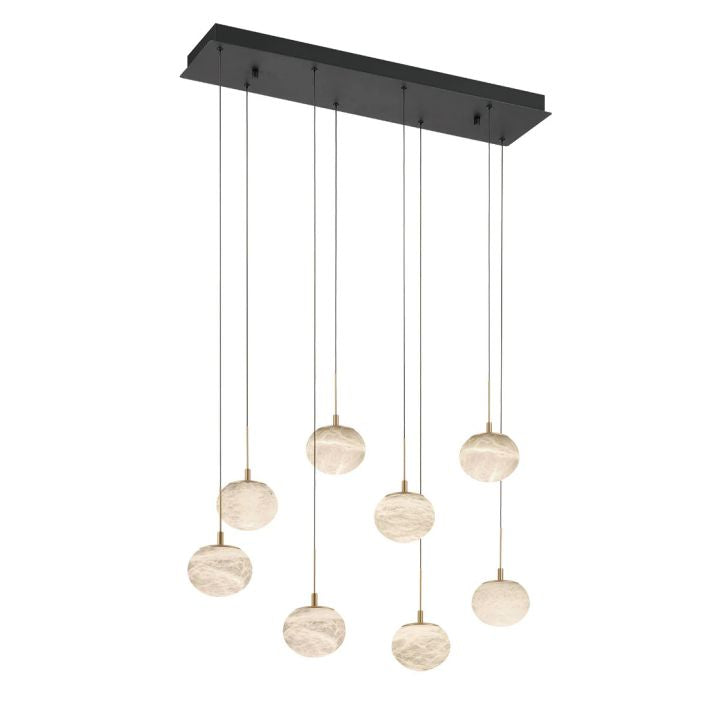

8-Light Chandelier

• Canopy: 35½"L × 9"W × 1¾"H
• Maximum Overall Hanging Height: 153"
• Suspension Cord Length: 144"
• Approximate Product Weight: 34.78 lbs.

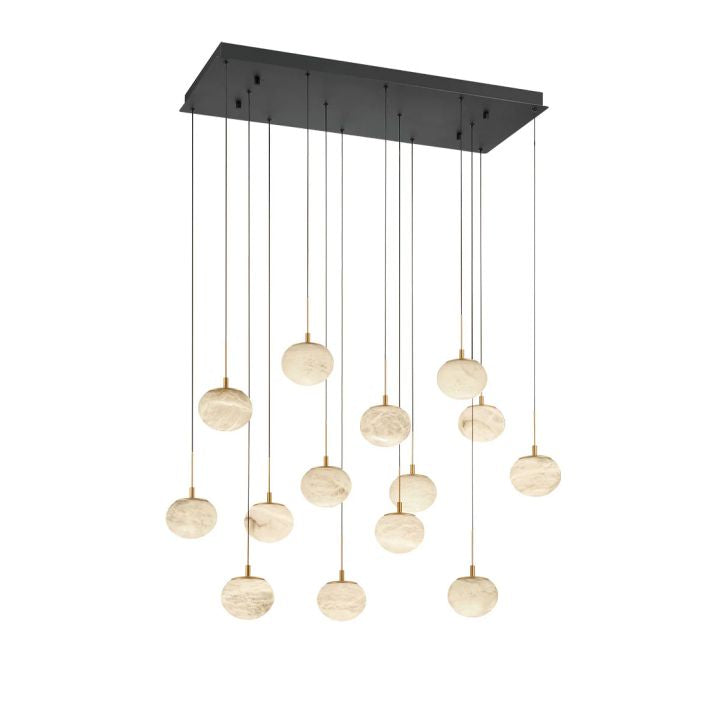

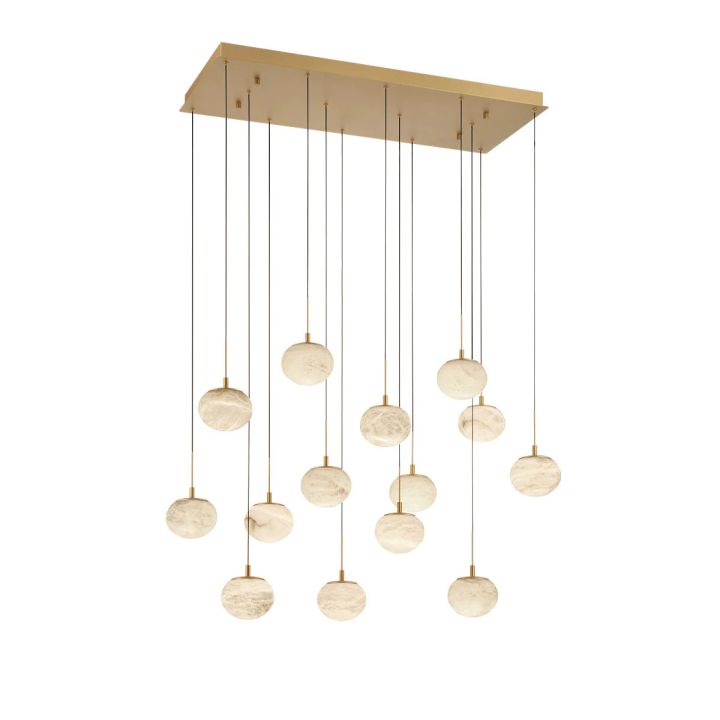

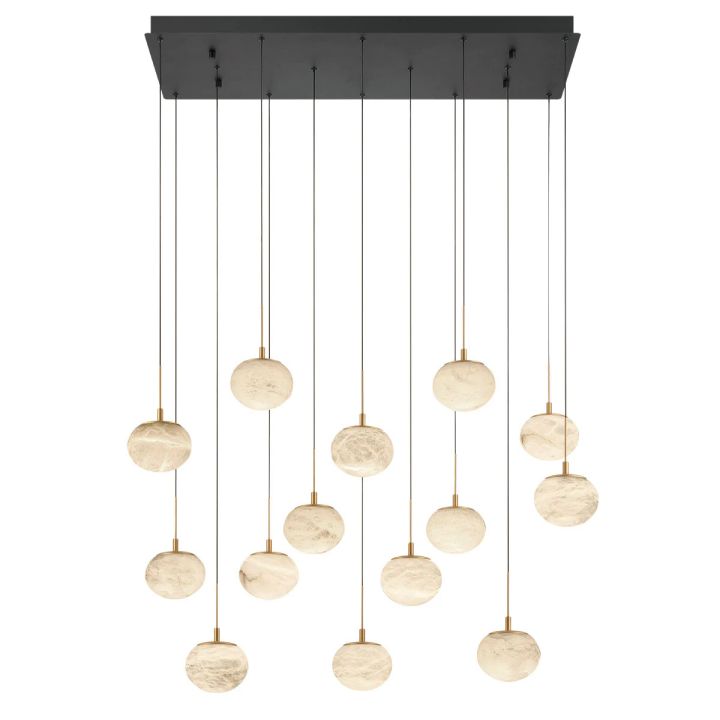

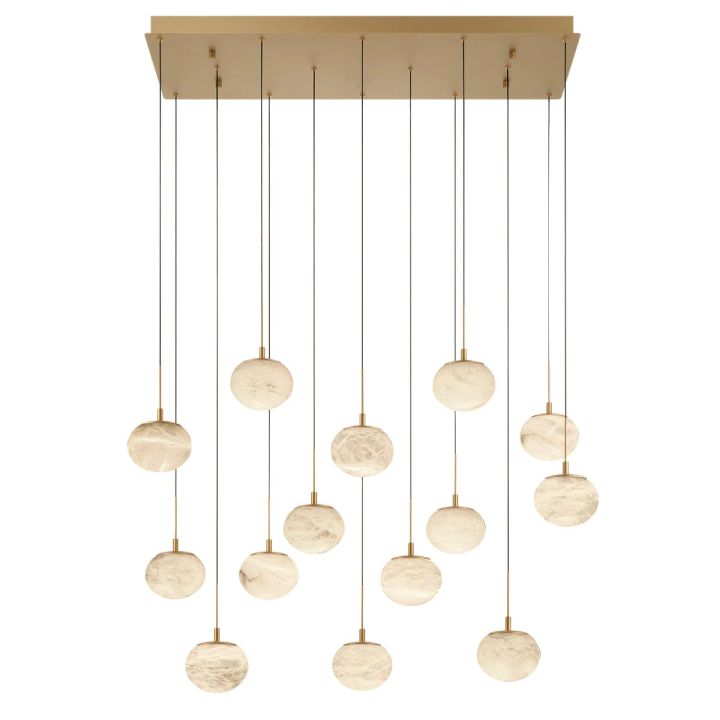

14-Light Chandelier

• Canopy: 41¼"L × 17¾"W × 1¾"H
• Maximum Overall Hanging Height: 153"
• Suspension Cord Length: 144"
• Approximate Product Weight: 66.2 lbs.

Shared Pendant Dimensions

• Individual Alabaster Shade: 6" diam. × 4¼"H
• Individual Pendant Assembly Height: 9¼"

Pendant-assembly height includes the alabaster shade and its metal fittings, not the adjustable suspension cord. Overall hanging height is measured from the ceiling to the lowest point of the fixture. Canopy dimensions do not represent the complete outer spread of the suspended shades. Product weights are approximate and exclude packaging.

Product Details

Light Source

• Fixture Type: Linear multi-pendant chandelier
• Light Source: Integrated LED
• Integrated LED Included: Yes
• Color Temperature: 3000K warm white
• Color Rendering Index: CRI 90

Lighting by Configuration

5-Light Total Wattage: 40W 5-Light Rated Delivered Light Output: 2,000 lumens 8-Light Total Wattage: 64W 8-Light Rated Delivered Light Output: 3,200 lumens 14-Light Total Wattage: 112W 14-Light Rated Delivered Light Output: 5,600 lumens

Electrical & Controls

• Dimmable: Yes
• Input Voltage: 120V
• Power Type: Hardwired
• Location Rating: Indoor dry locations
• Assembly Required: Yes

Materials & Construction

• Shade Material: Natural alabaster
• Metal Components: Steel and aluminum
• Finish Options: Antique Brass, Matte Black, Custom Polished Nickel
• Suspension: Individually adjustable pendant cords

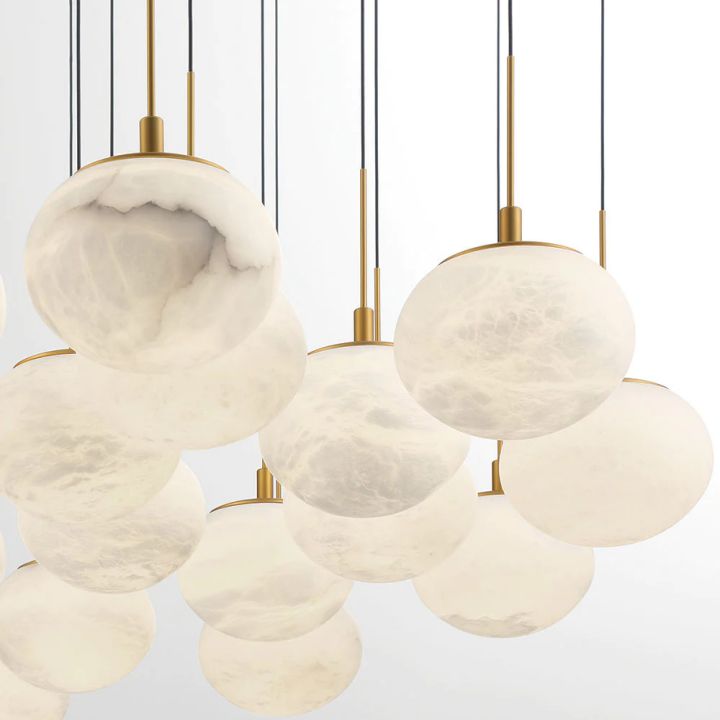

Each flattened, rounded shade sits beneath a small metal cap and an elongated connection fitting. The repeated stone forms bring continuity to the arrangement, while differences in veining distinguish the individual pendants. The five-light canopy positions the shades in one line. The eight- and fourteen-light canopies add depth to the suspension layout, allowing the pendants to occupy several levels without a connecting frame between them.

Application

Position Cudor above a kitchen island or rectangular dining table, aligning the canopy with the furniture below. The five-light version offers the narrowest canopy. The eight-light version has a shorter but wider canopy, while the fourteen-light version provides the broadest arrangement and the highest light output. Compare both canopy length and width with the available ceiling area, then allow for the full spread of the alabaster shades. Plan individual drop heights around seated sightlines, nearby cabinetry, and circulation space rather than using the maximum hanging height by default.

Shipping & Warranty

• Warranty: 3-Year Limited Warranty
• Shipping: Free Shipping on All Orders

For current availability, shipping options, and a project-specific delivery window, please contact our XYlight Support Team.

Installation & Notes

• Professional Installation: This fixture is hardwired and must be installed by a licensed electrician in accordance with applicable local electrical codes.
• Pendant Arrangement: Set the individual drop heights during installation, keeping the lowest pendant within the specified maximum overall hanging height.
• Structural Support: Have the installer verify the mounting structure for the complete installed load. The fourteen-light version requires additional structural ceiling support independent of the electrical junction box.
• LED Dimming: Use a compatible LED wall dimmer matched to the supplied driver and the total connected load.
• Ceiling Conditions: For sloped or vaulted ceilings, coordinate the canopy position and mounting configuration with our XYlight Support Team before ordering.
• Stone Handling: Support each alabaster shade during assembly and cleaning. Do not lift or move the complete fixture by its shades or suspension cords.

Natural alabaster varies in veining, tone, and translucency. Individual shades within one chandelier, and separate fixtures ordered together, may differ in appearance. Switch off the electrical supply and allow the fixture to cool before cleaning. Dust the stone and metal gently with a soft, dry cloth. Avoid liquid cleaners, abrasive materials, and harsh chemicals, and do not spray cleaning products directly onto the alabaster or LED components. Need Design Guidance? Our XYlight Support Team can help with configuration selection, island and table proportions, canopy placement, pendant spacing, hanging heights, finish coordination, and LED controls.
