The Contemporary Spiral Tube LED Staircase Chandelier turns slender illuminated tubes into a vertical architectural composition designed for stairwells, double-height foyers, atriums, and tall living spaces. Each suspended acrylic tube glows from within, allowing the fixture to read as a cascade of light rather than a conventional chandelier with visible bulbs and shades. Individual suspension lengths can be adjusted during installation, giving the composition flexibility to form a clean vertical drop, a stepped arrangement, or a more sculptural spiral profile. Available in Gold or Black and in seven configurations from 3 to 36 lights, this chandelier can scale from a restrained stairwell accent to a substantial multi-story lighting installation.
Dimensions

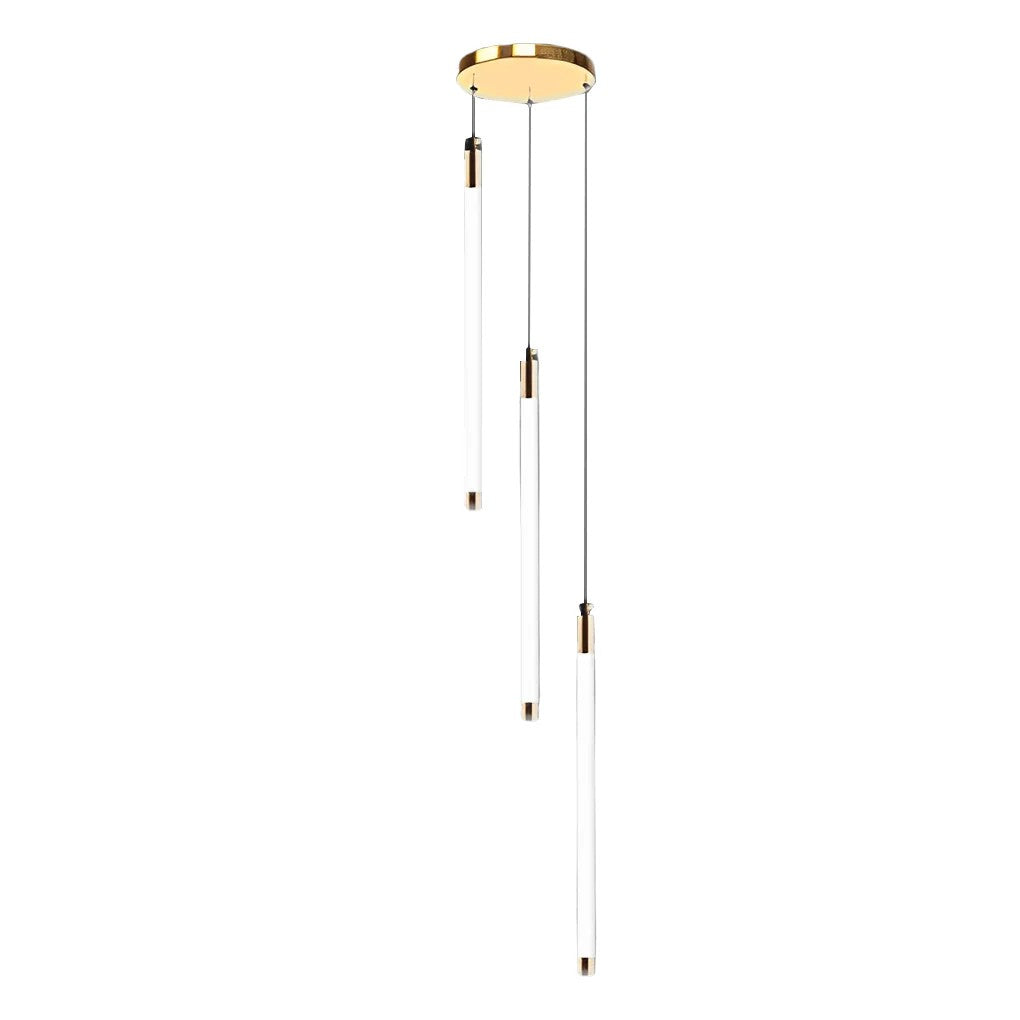

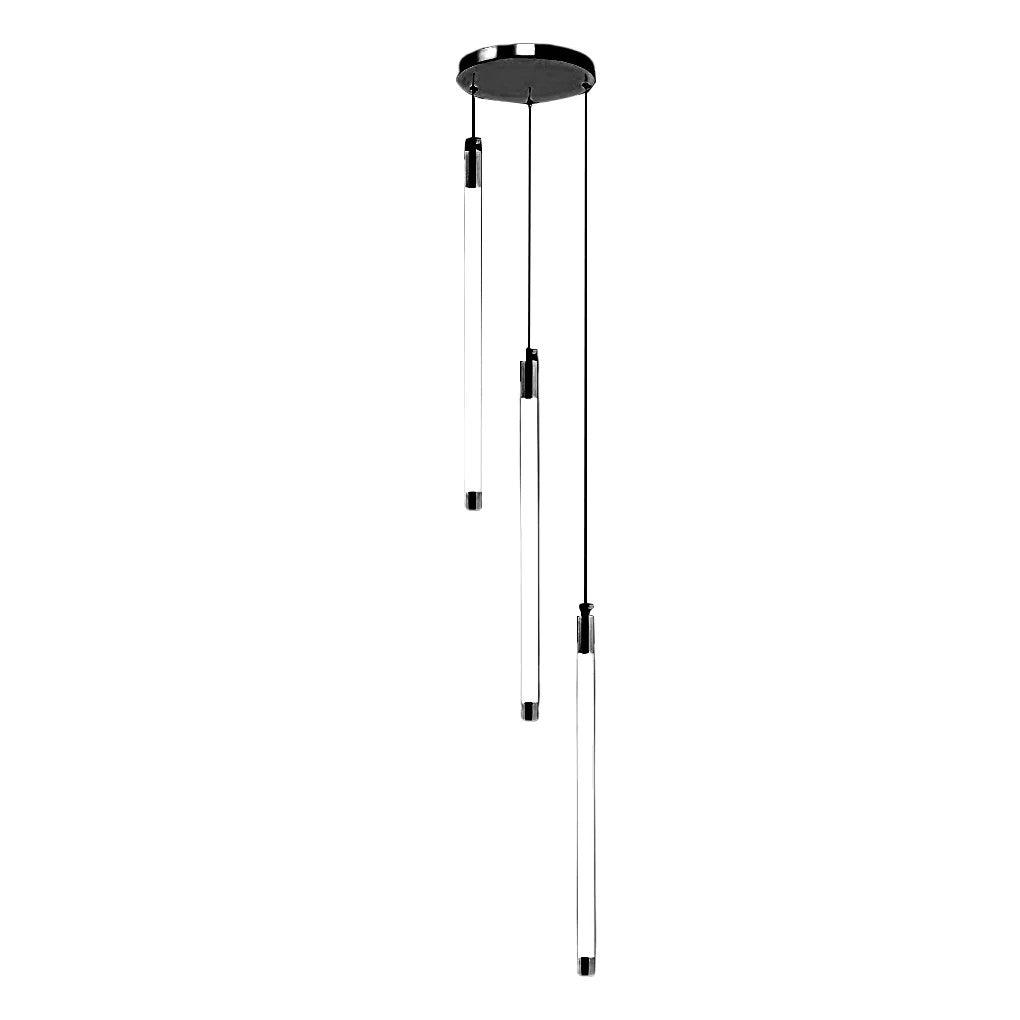

3-Light
- Overall: 7.87"W × 7.87"D × 59.06"H
- Total LED Power: 30W
5-Light
- Overall: 11.81"W × 11.81"D × 70.87"H
- Total LED Power: 50W
8-Light
- Overall: 15.75"W × 15.75"D × 78.74"H
- Total LED Power: 80W
12-Light
- Overall: 19.69"W × 19.69"D × 78.74"H
- Total LED Power: 120W
18-Light
- Overall: 19.69"W × 19.69"D × 78.74"H
- Total LED Power: 180W
24-Light
- Overall: 23.62"W × 23.62"D × 78.74"H
- Total LED Power: 240W
36-Light
- Overall: 27.56"W × 27.56"D × 78.74"H
- Total LED Power: 360W
这套尺寸和功率在 Dazuma、BALDER、Lemay 等完全同款页面之间一致。
Product Details
- Finish Options: Gold / Black
- Materials: Metal / Acrylic
- Configuration Options: 3-Light / 5-Light / 8-Light / 12-Light / 18-Light / 24-Light / 36-Light
- Light Source: Integrated LED
- LED Power: Approximately 10W per illuminated tube
- Total Rated Power: 30W / 50W / 80W / 120W / 180W / 240W / 360W depending on selected configuration
- Integrated LED Included: Yes
- Power Type: Hardwired
- Control: Wall switch
- Voltage: 110–120V standard for US and Canada; alternate voltage configuration available by request
- Dimming: Not specified as dimmable in the current production configuration
- Intended Use: Indoor
- Suspension: Individually adjustable hanging lengths
Exact-match technical data identifies integrated LED illumination inside each acrylic tube and lists the same total wattage progression by light count.
Materials & Construction

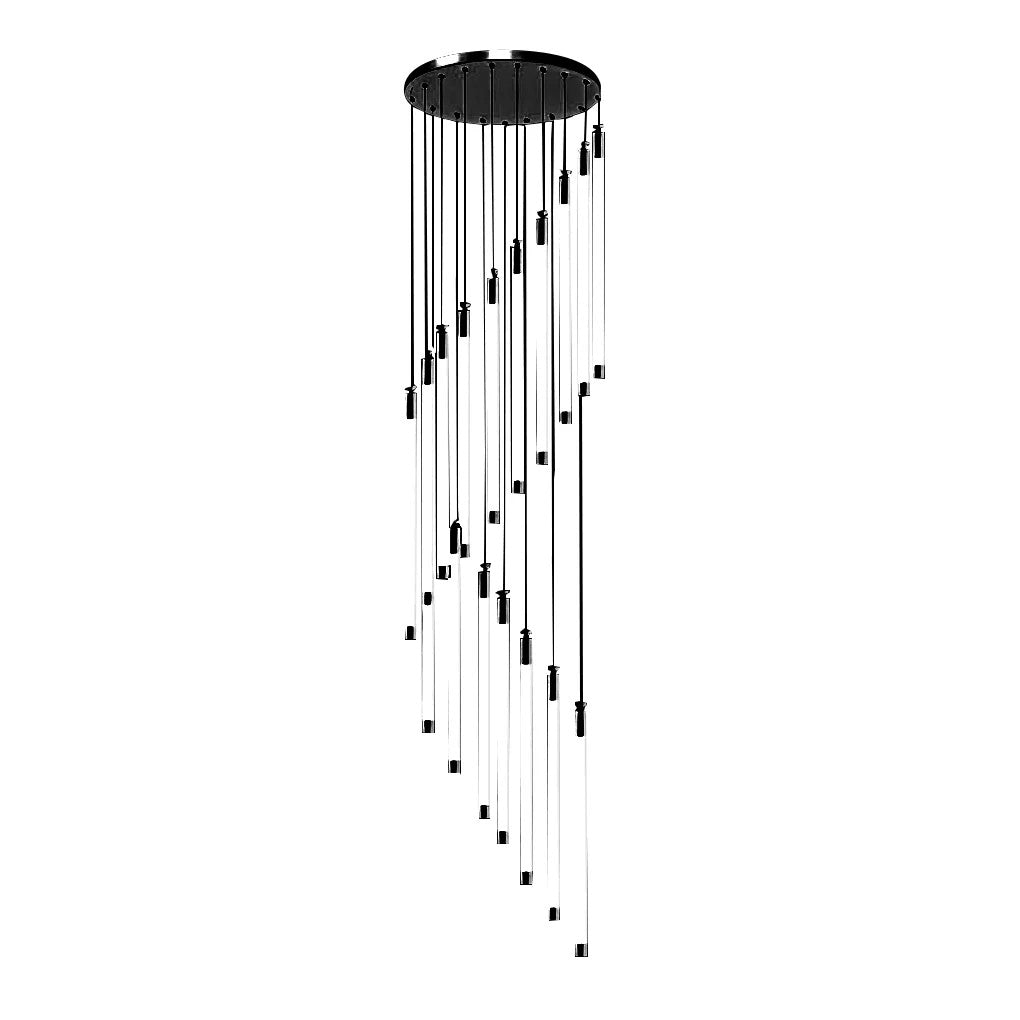

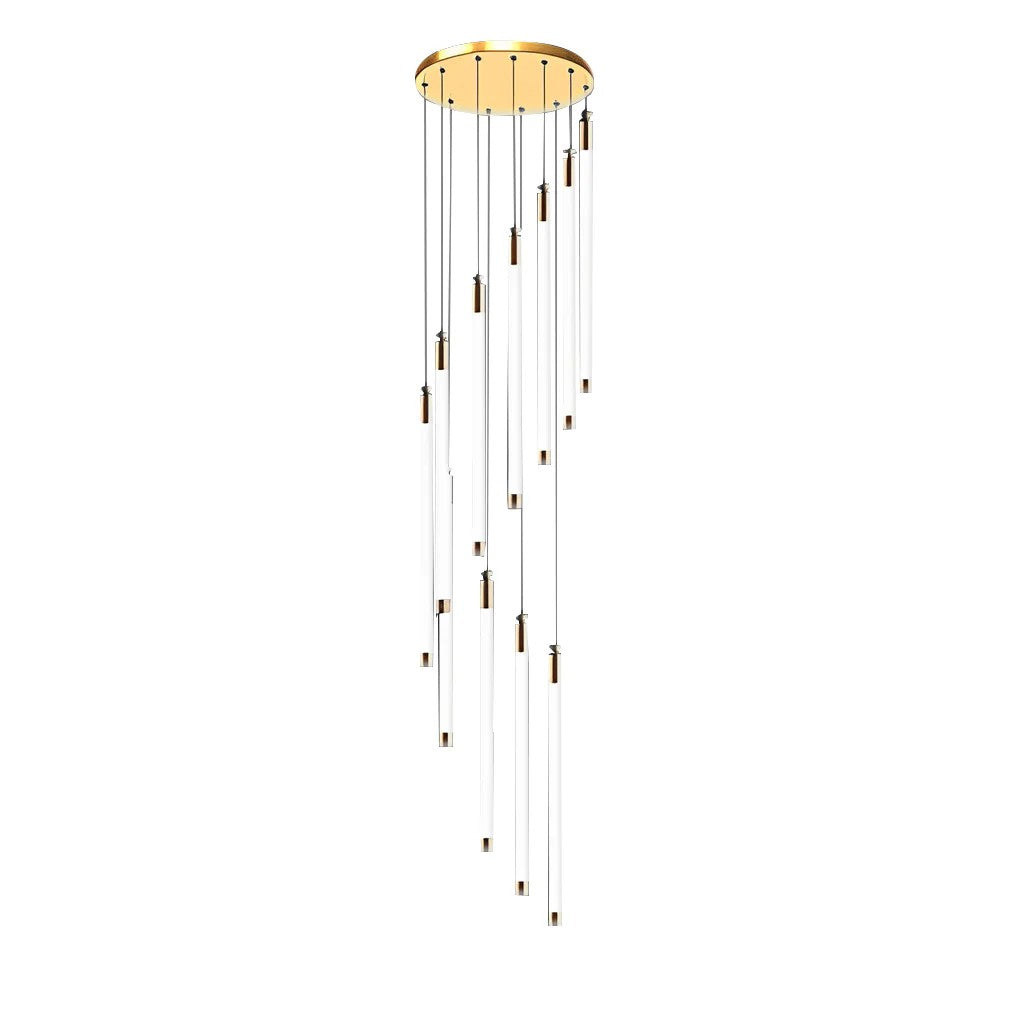

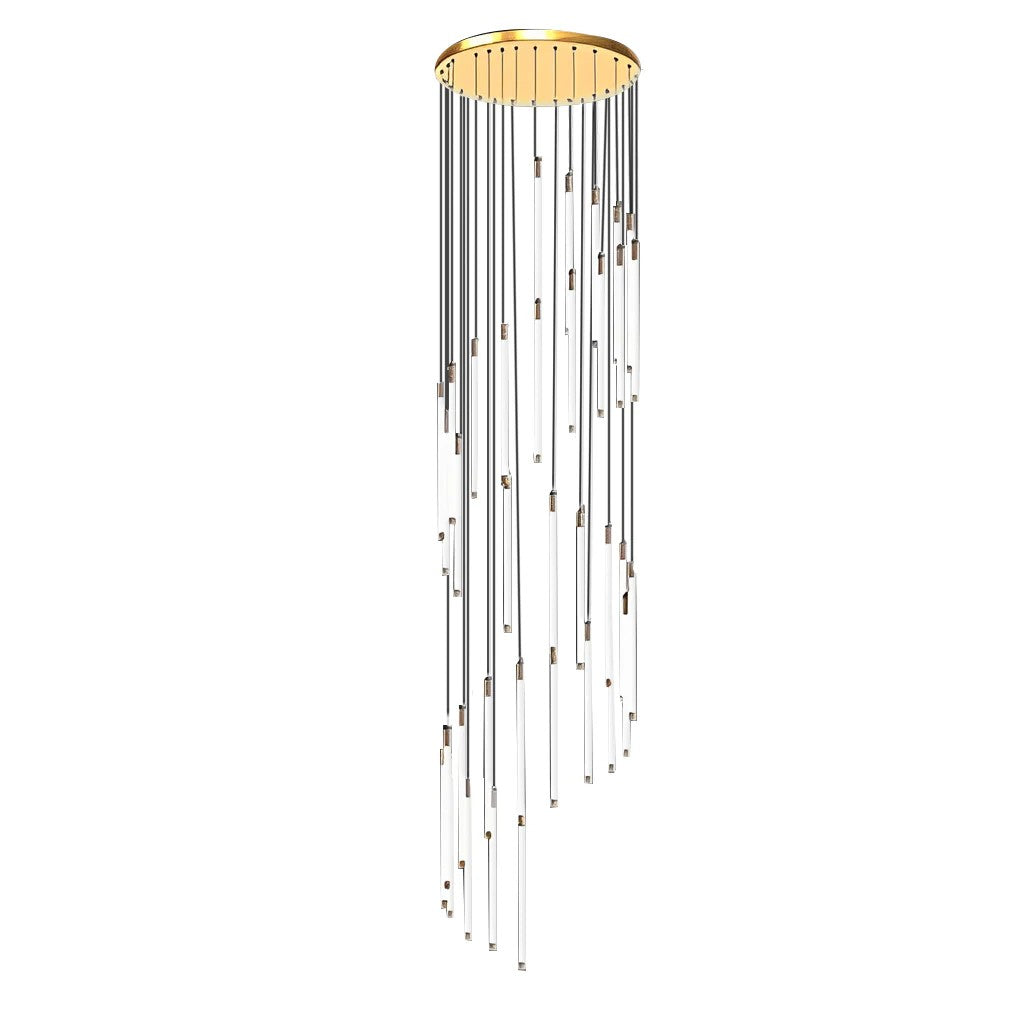

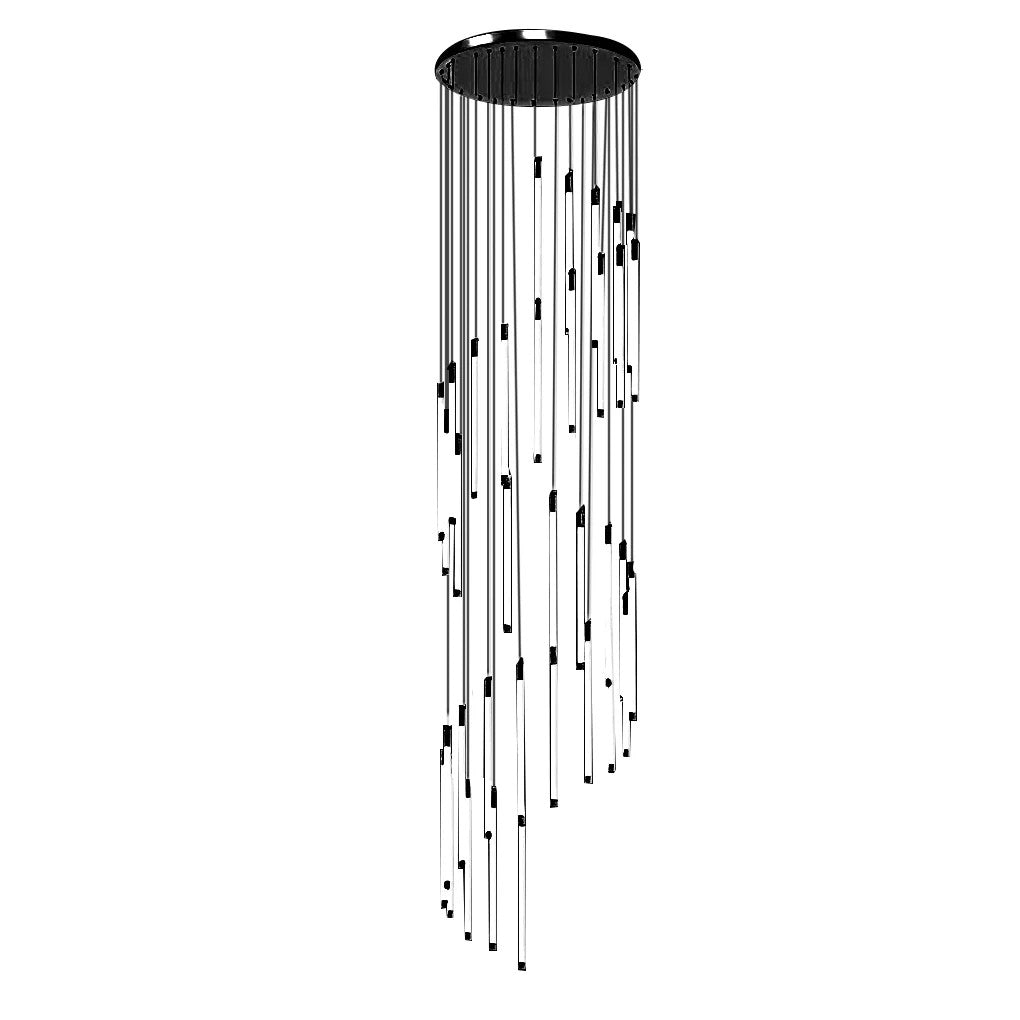

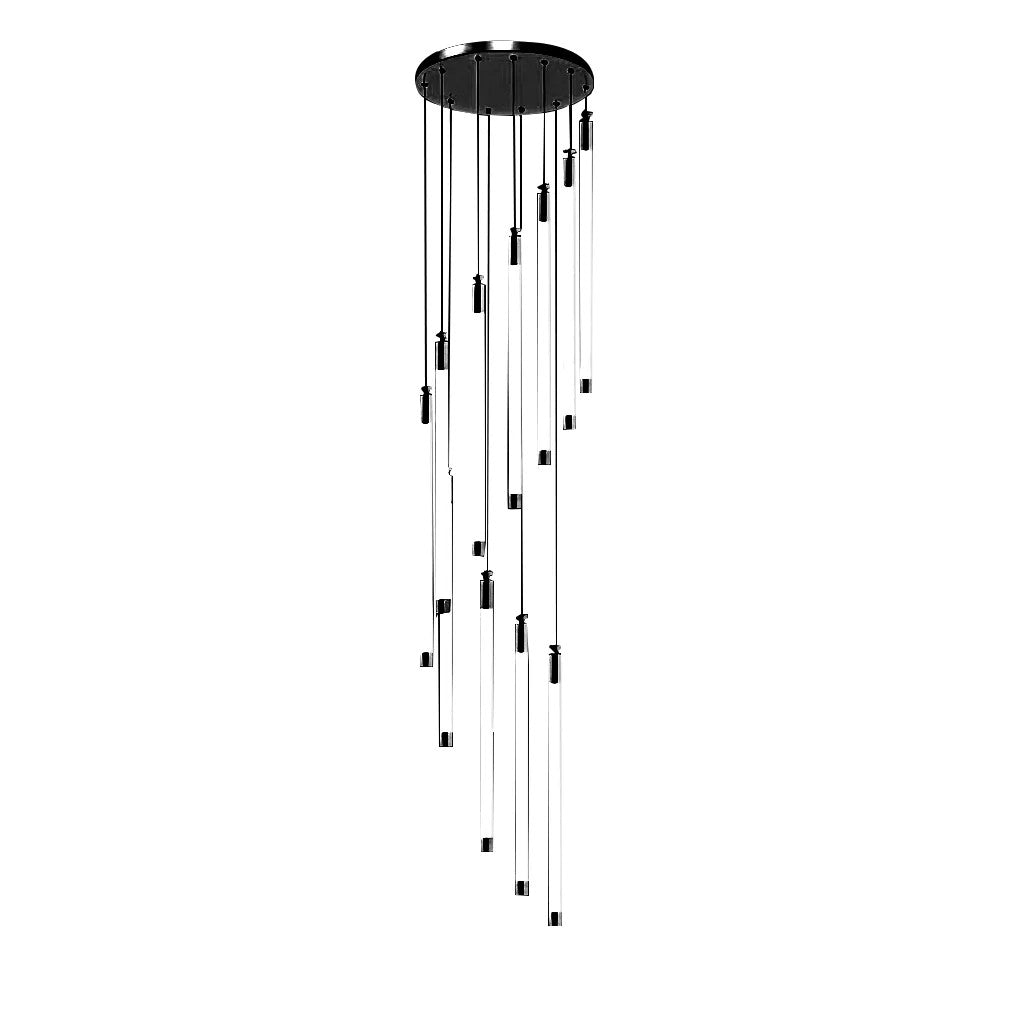

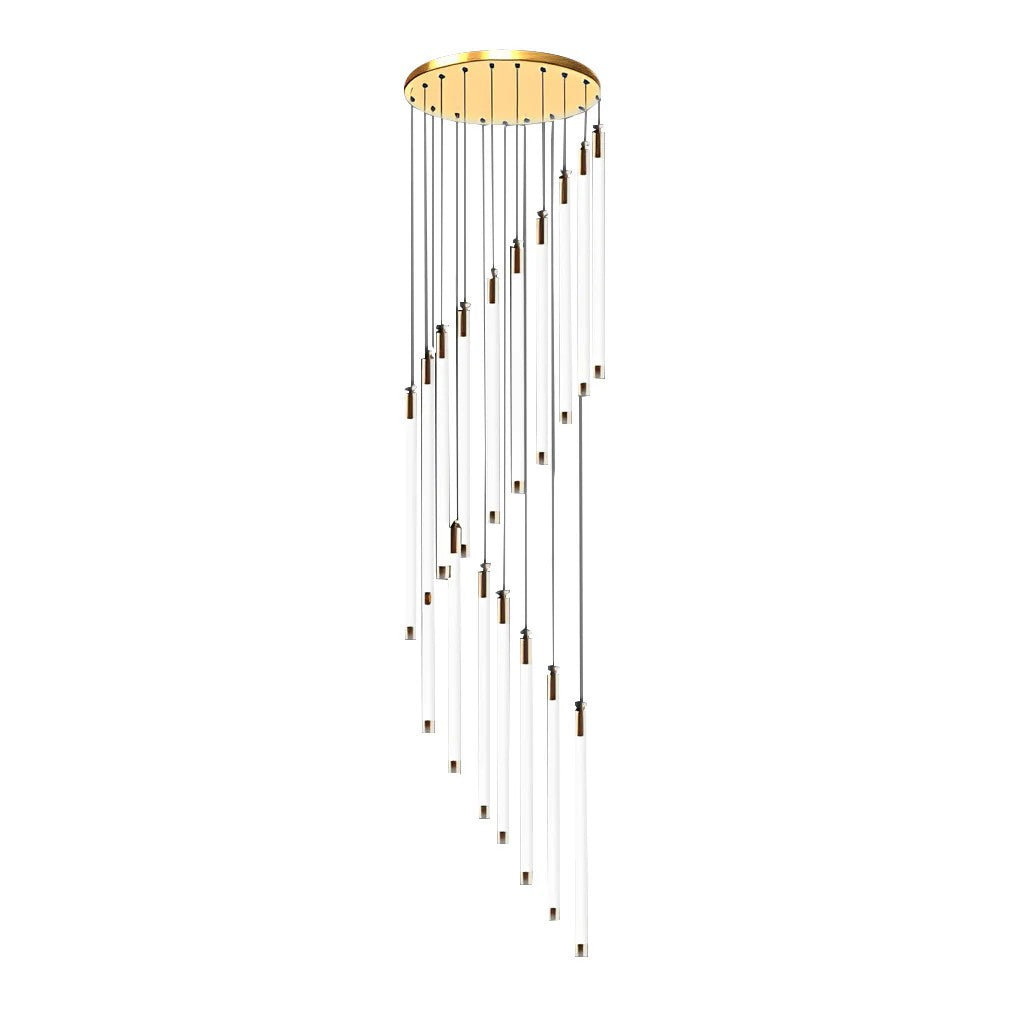

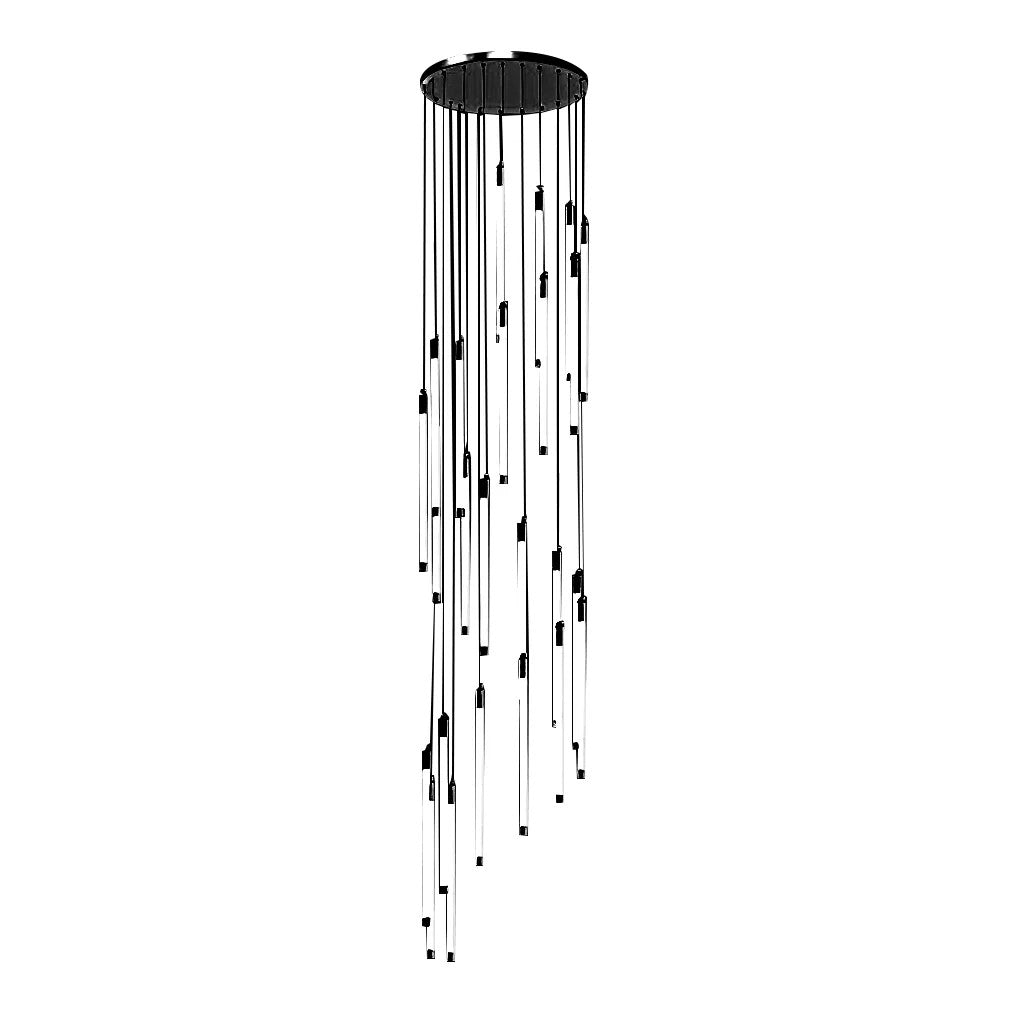

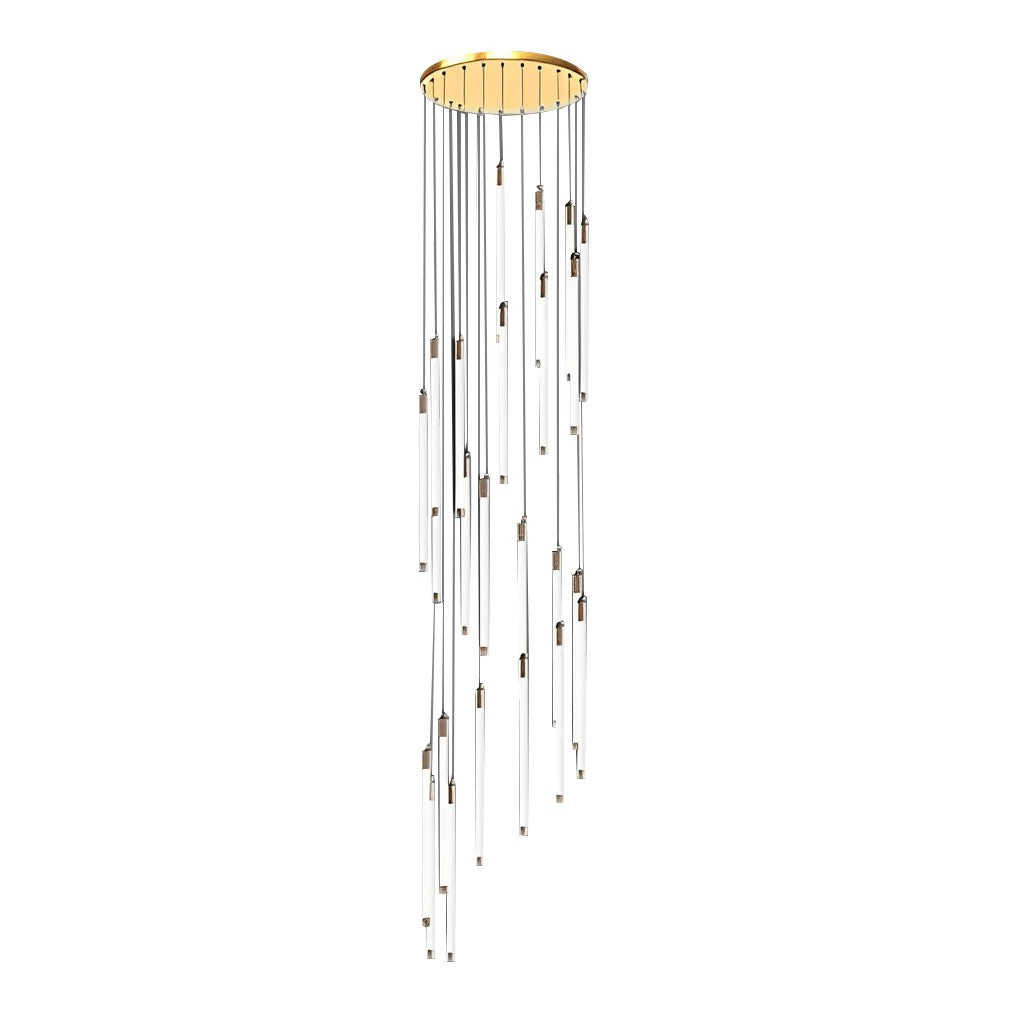

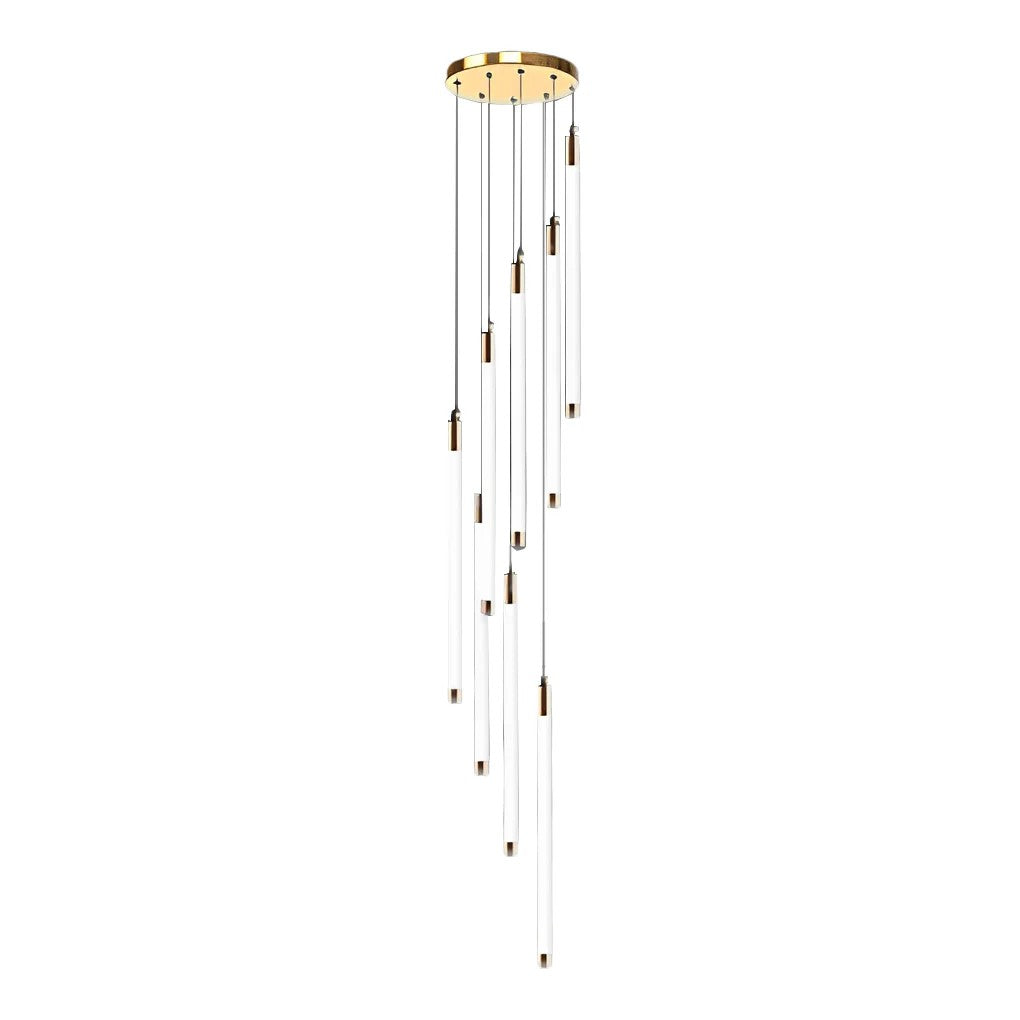

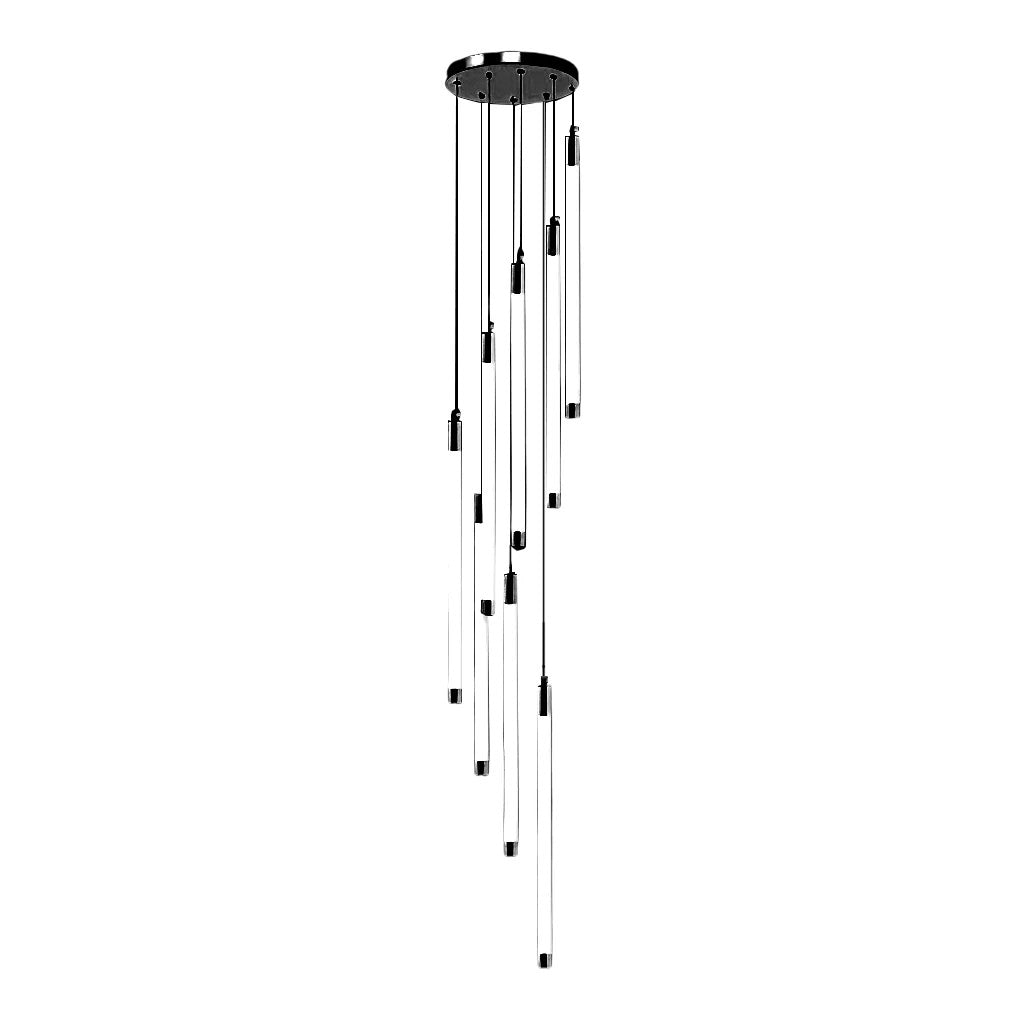

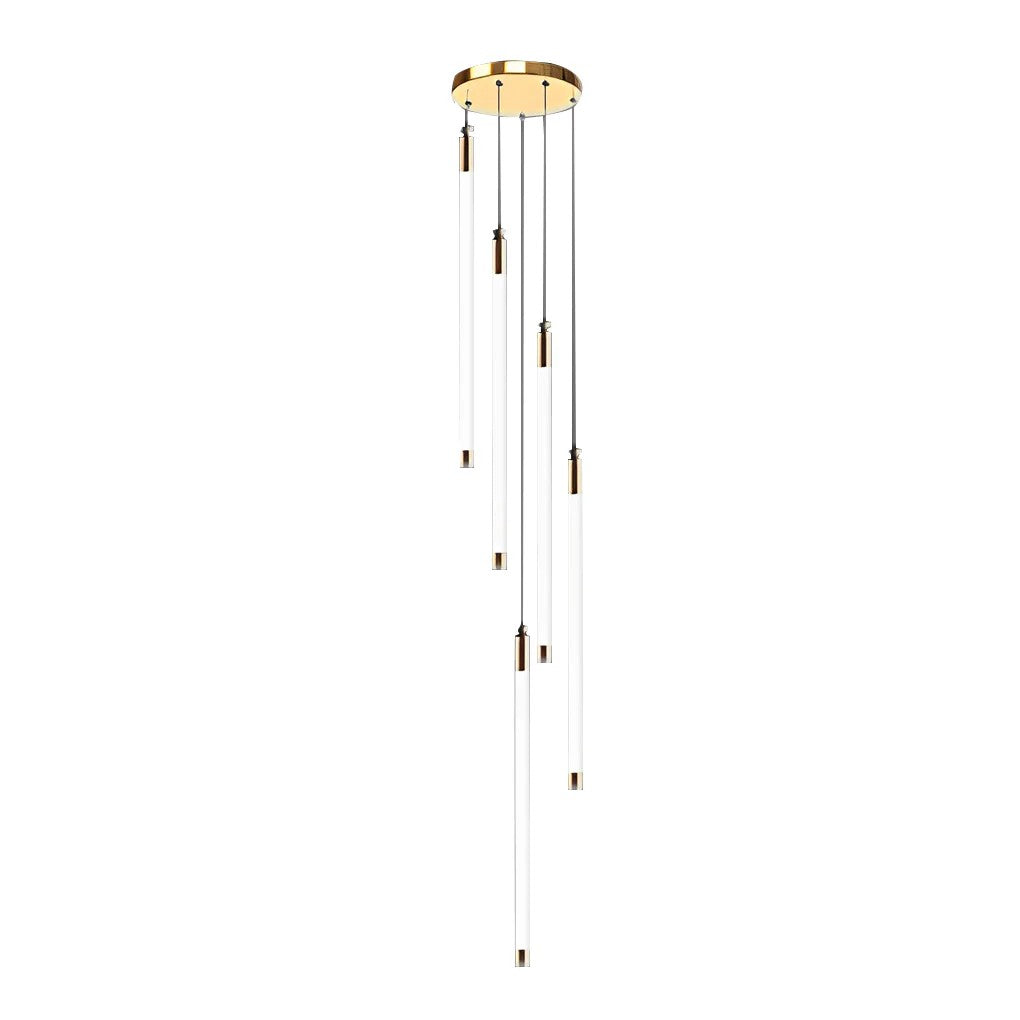

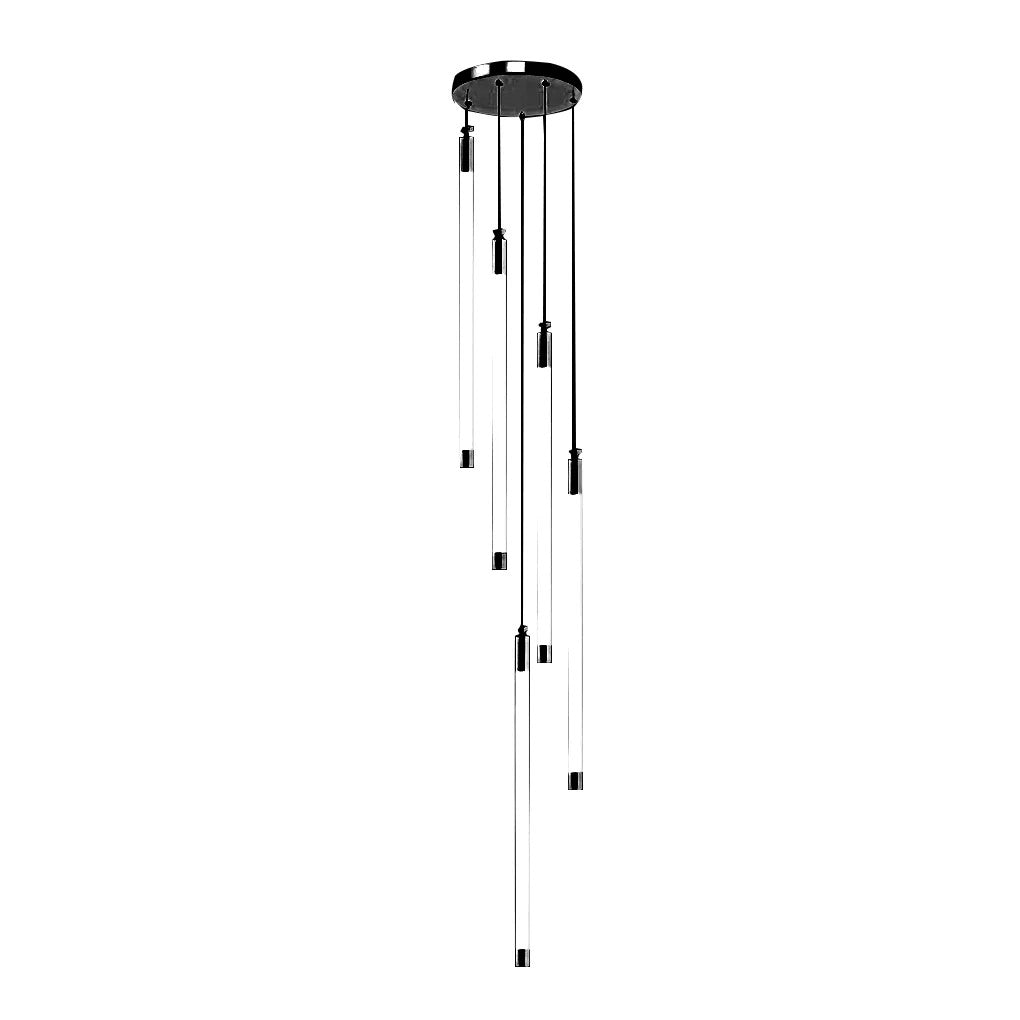

The chandelier is composed of slim acrylic light tubes suspended individually from a circular ceiling canopy and finished with Gold or Black metal detailing. Rather than using visible replaceable bulbs, the LED source is integrated into each tube, allowing the full vertical element to glow as part of the composition. Each hanging tube can be positioned independently during installation, giving the installer control over the final silhouette. The tubes may be arranged in a regular descending spiral or adjusted to respond to the rake of a staircase or the proportions of a double-height space.
Application

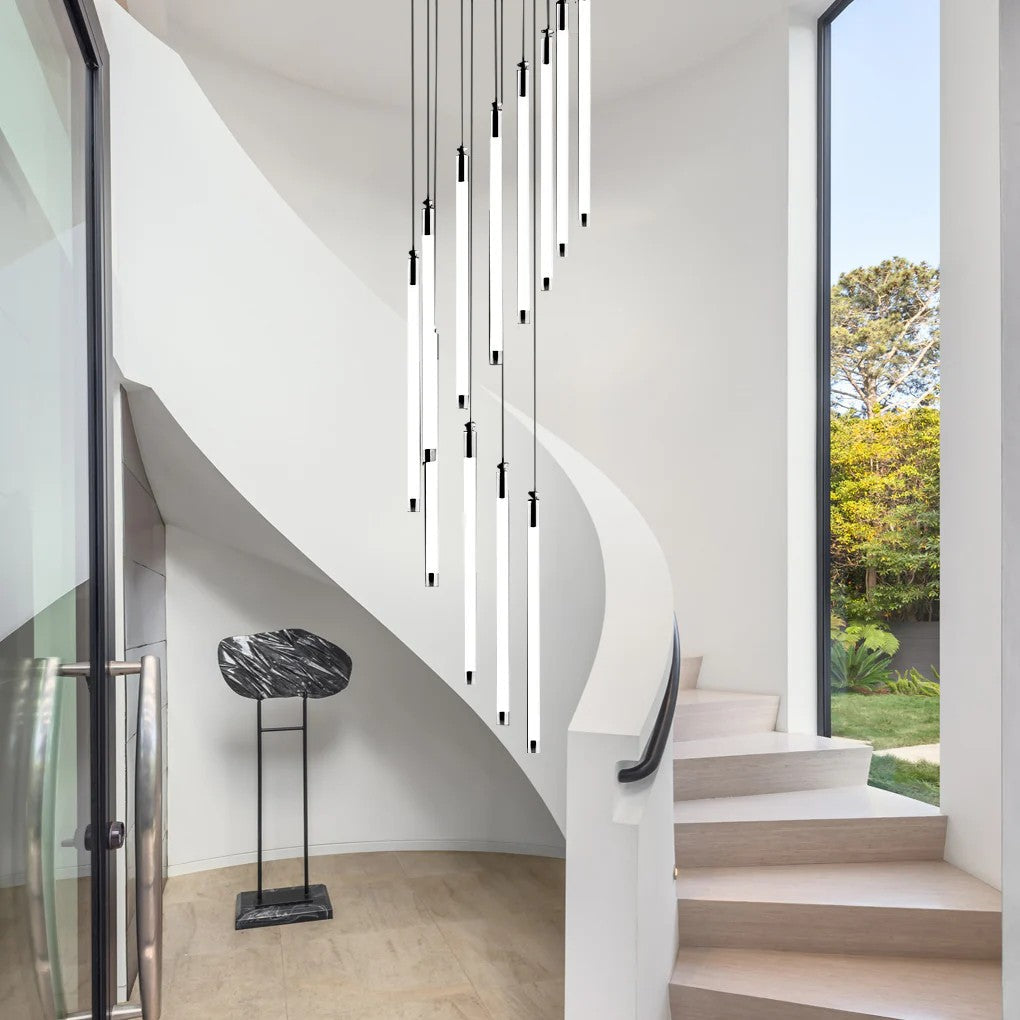

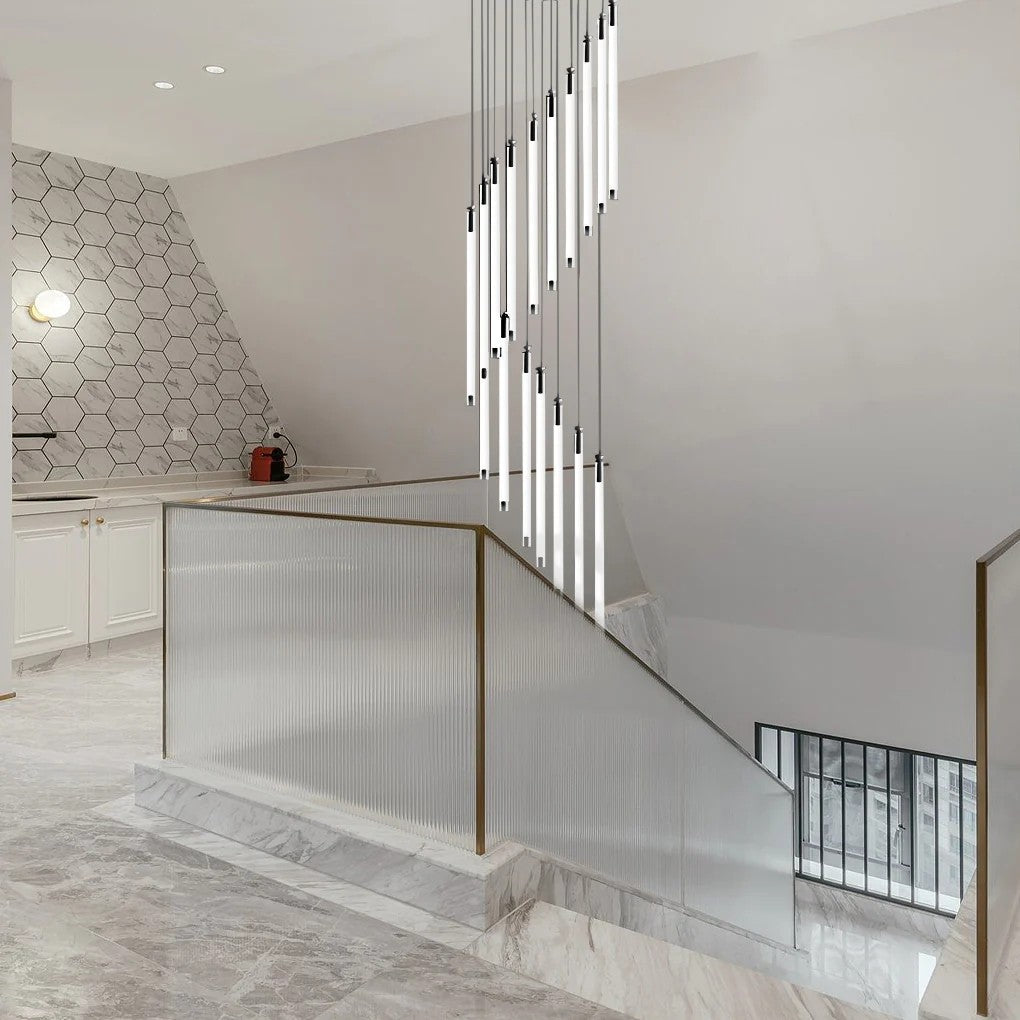

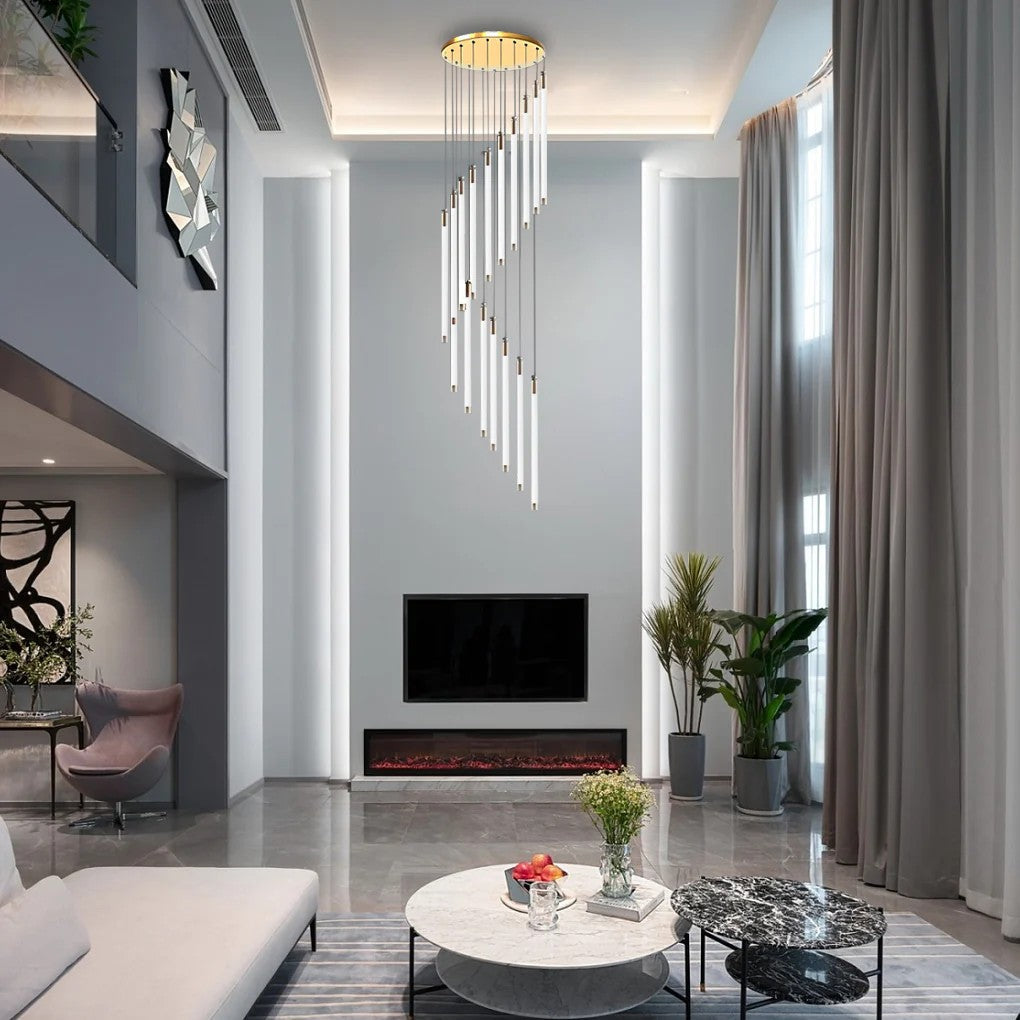

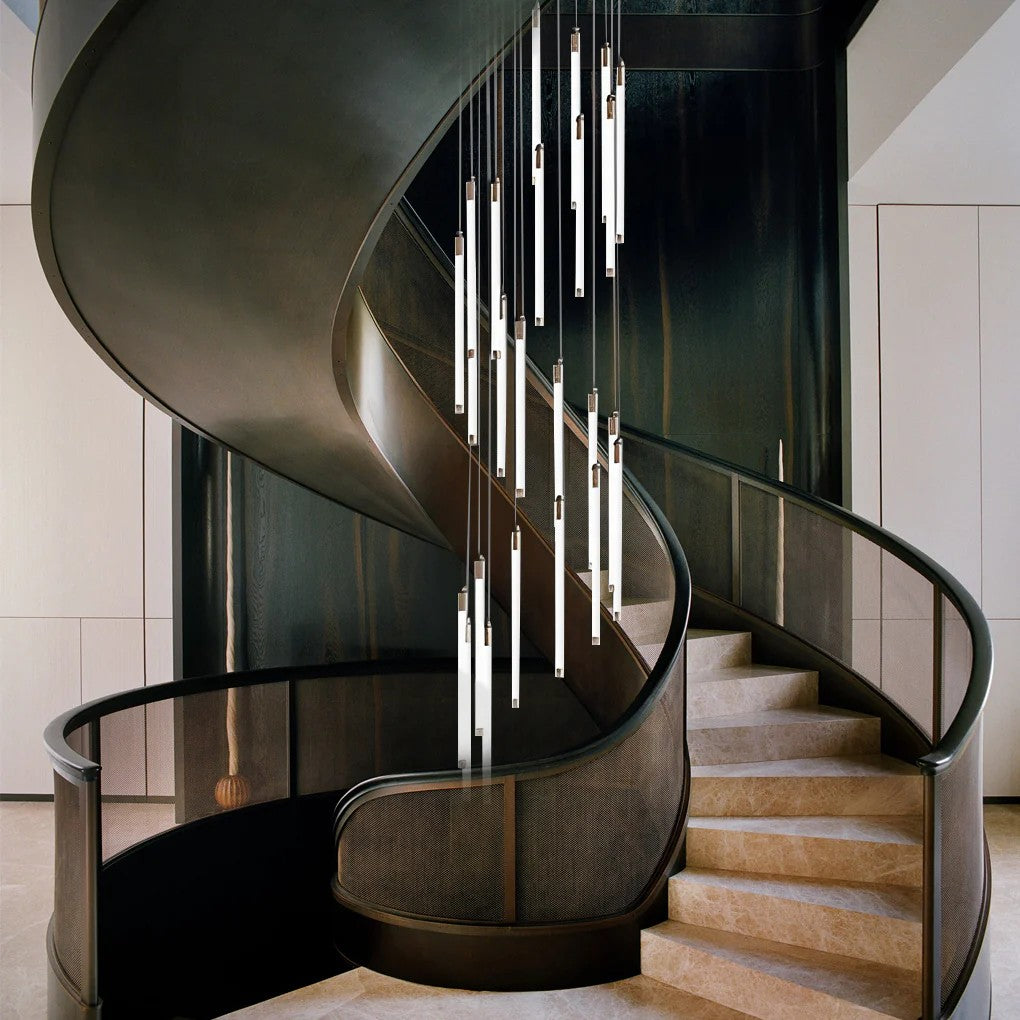

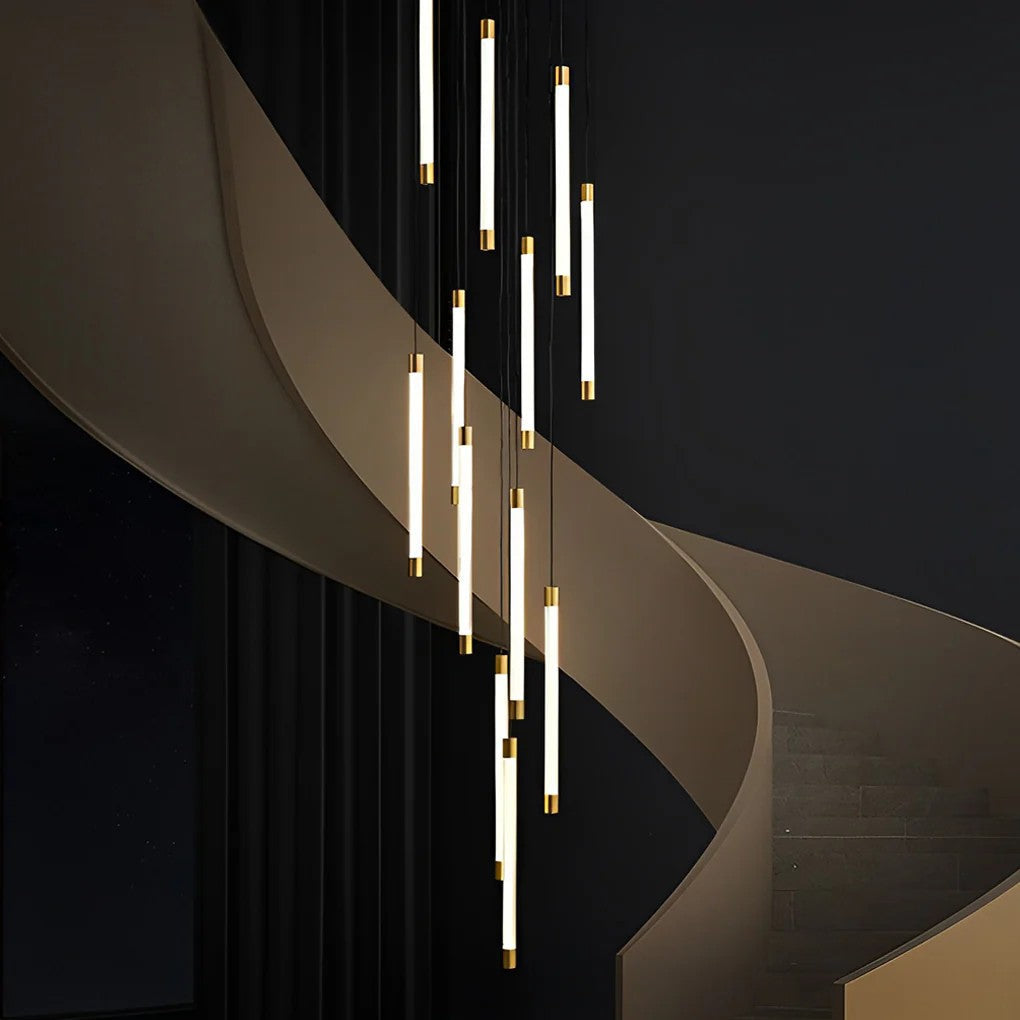

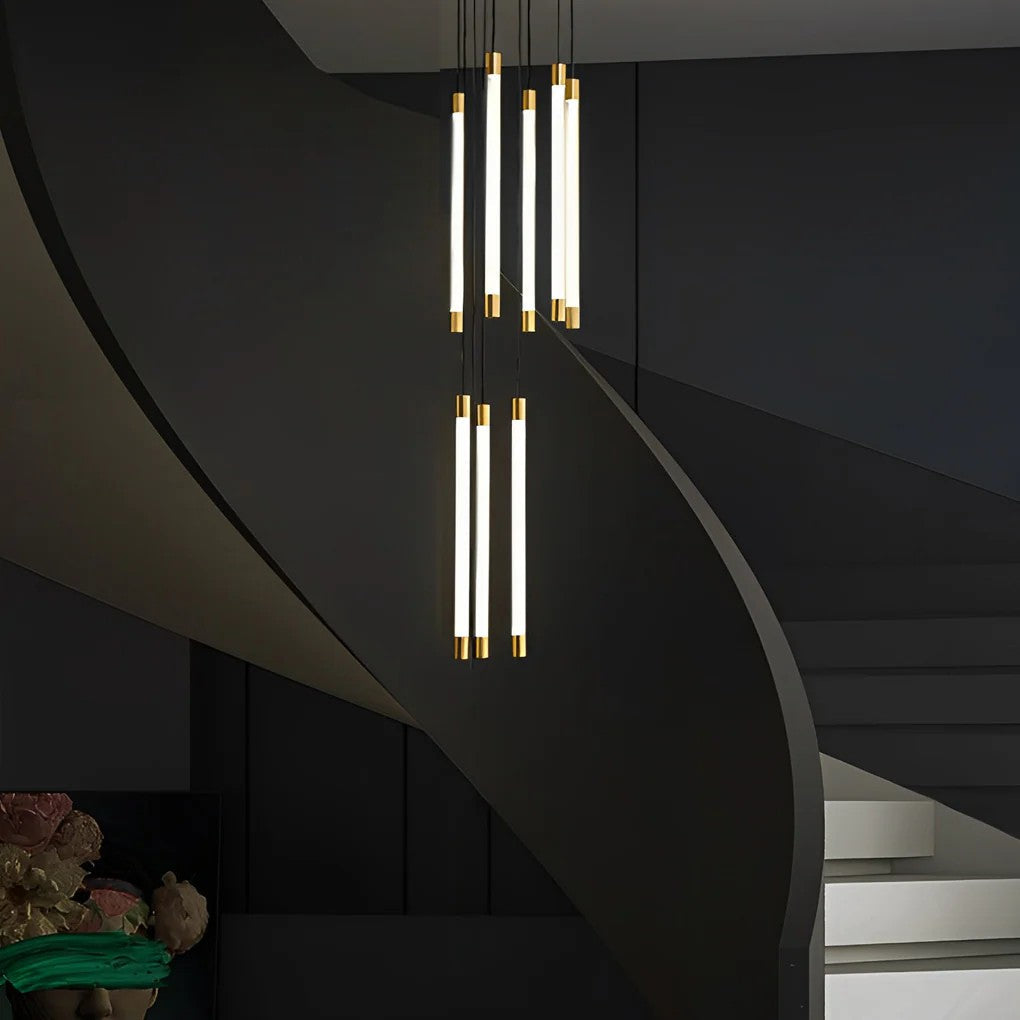

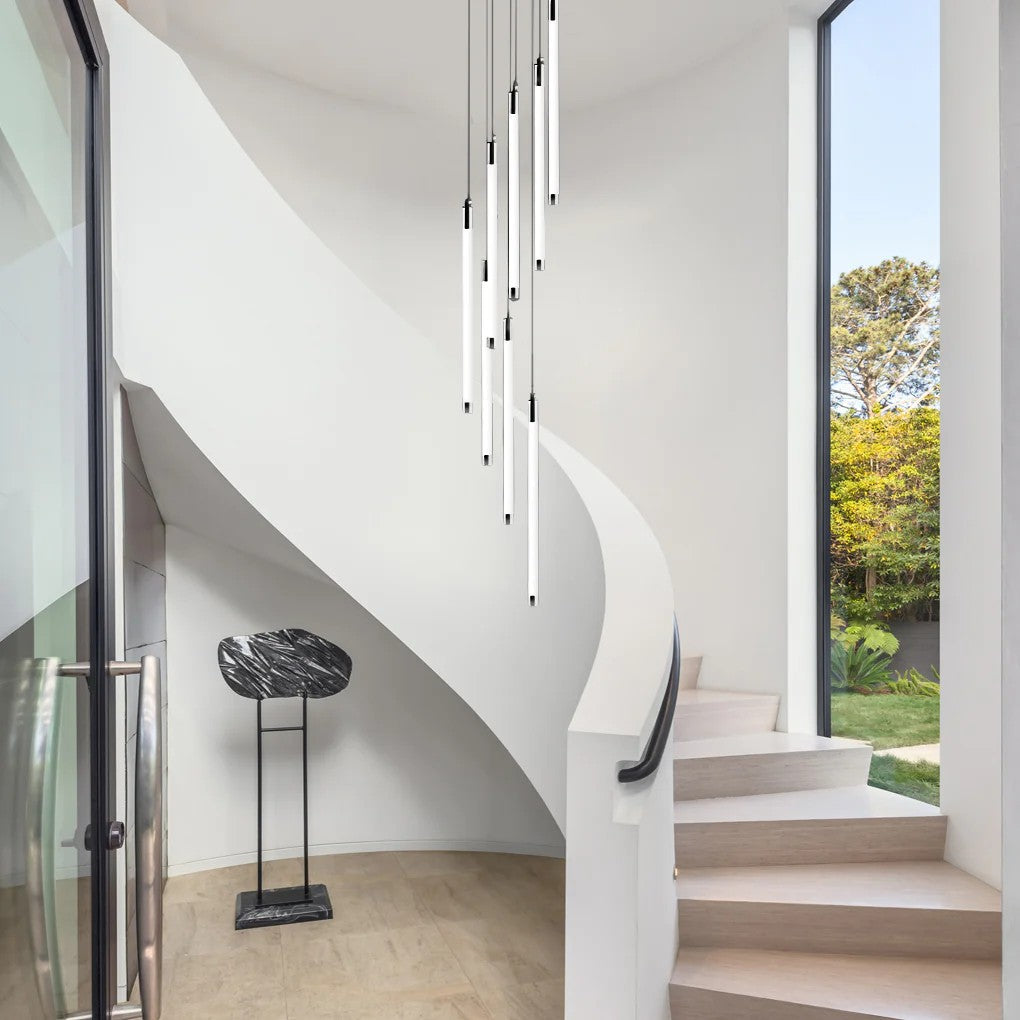

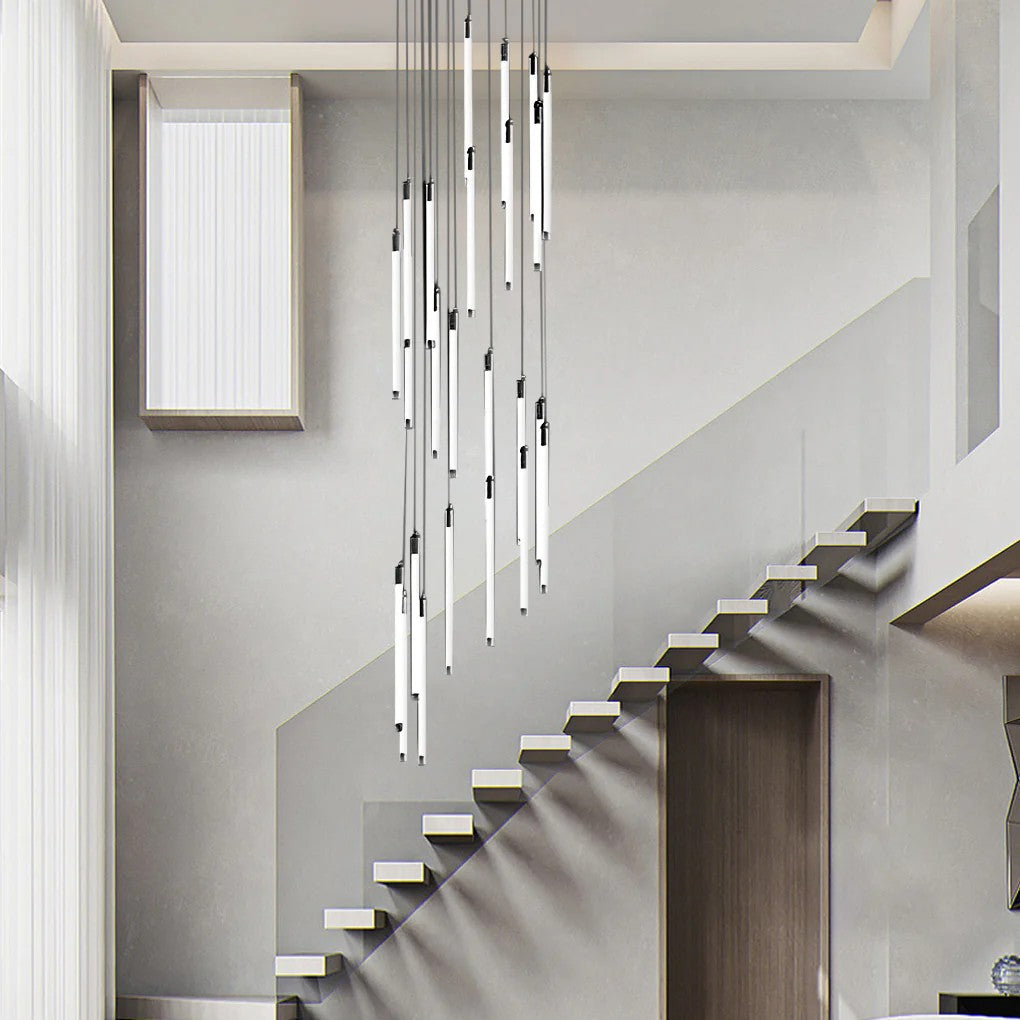

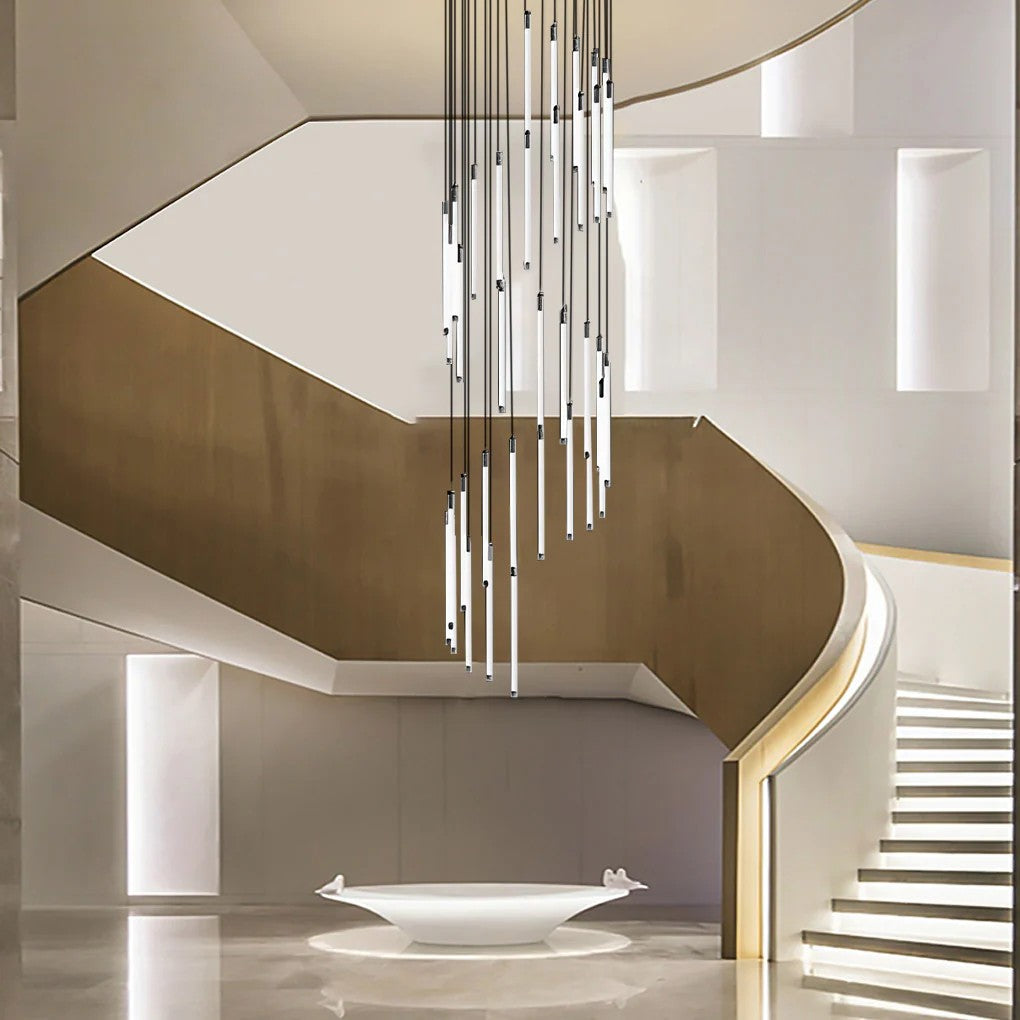

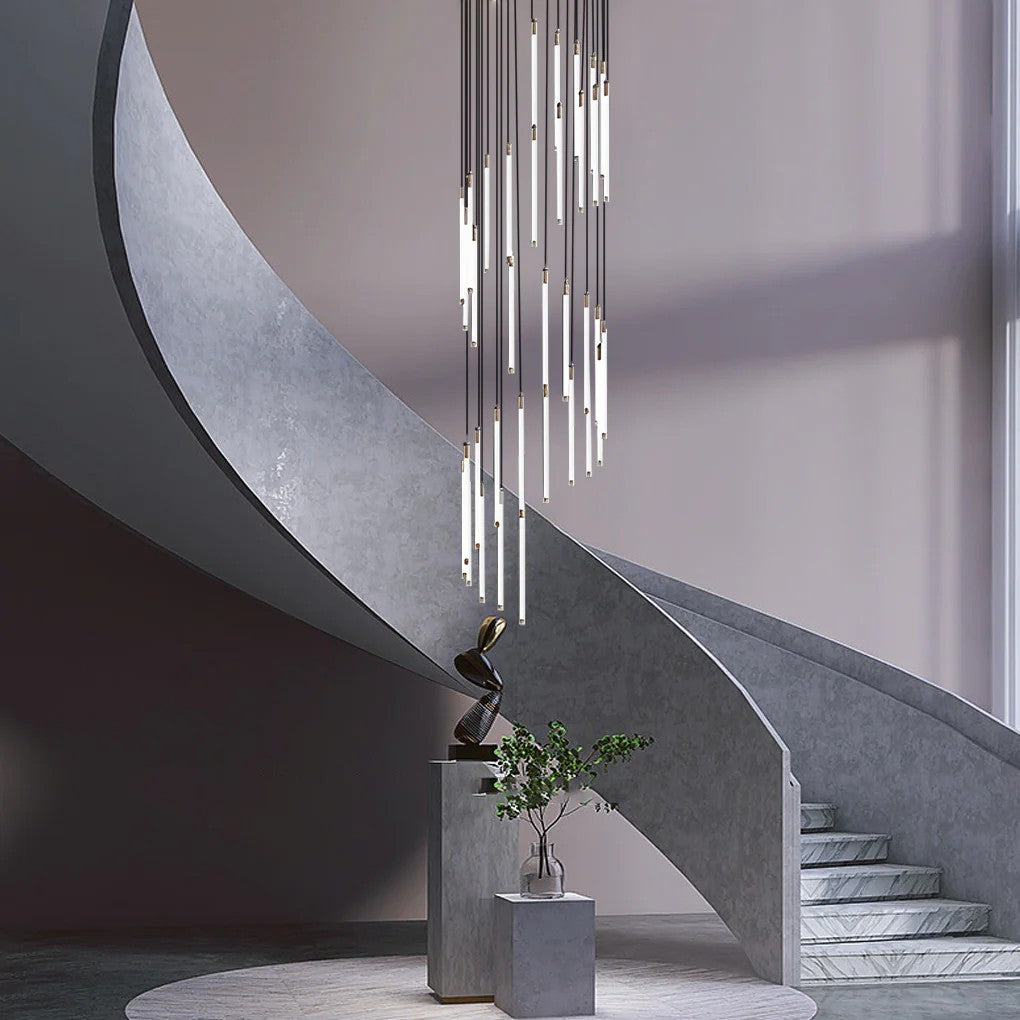

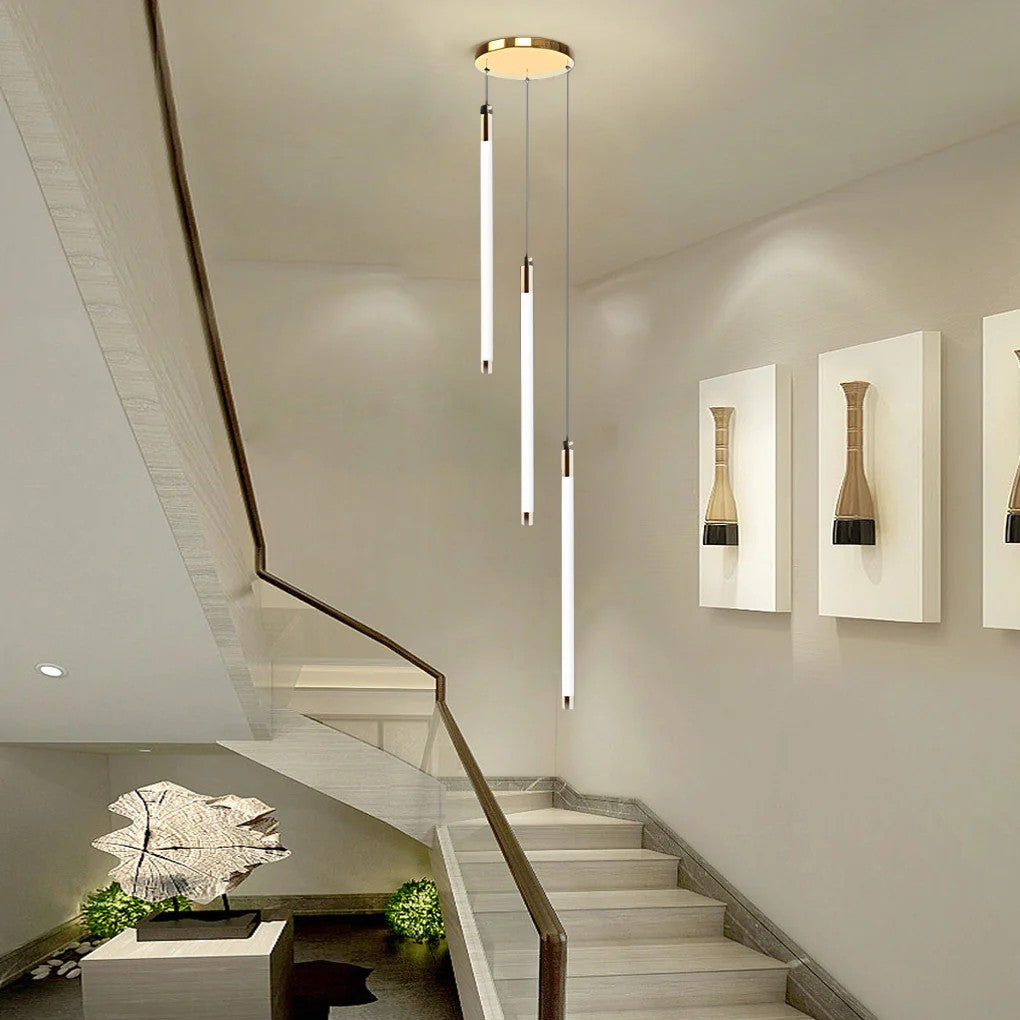

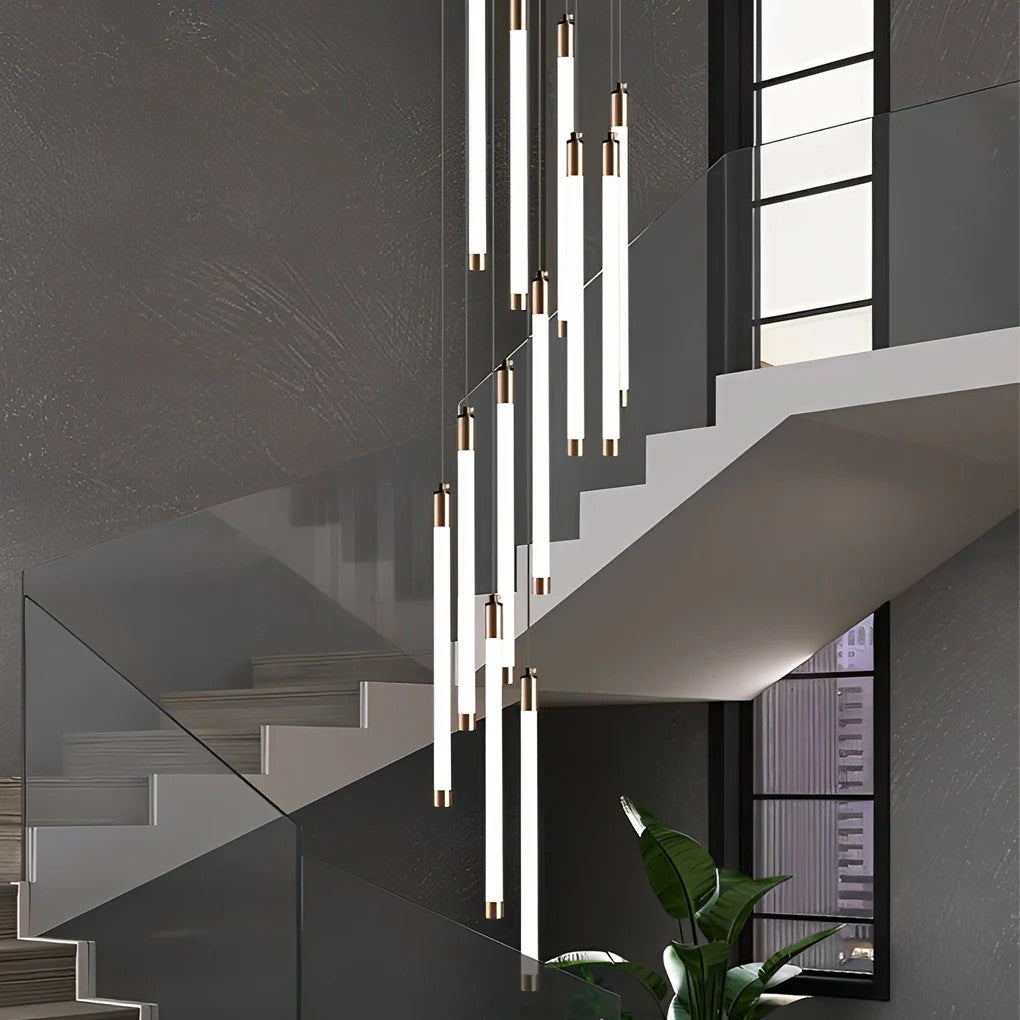

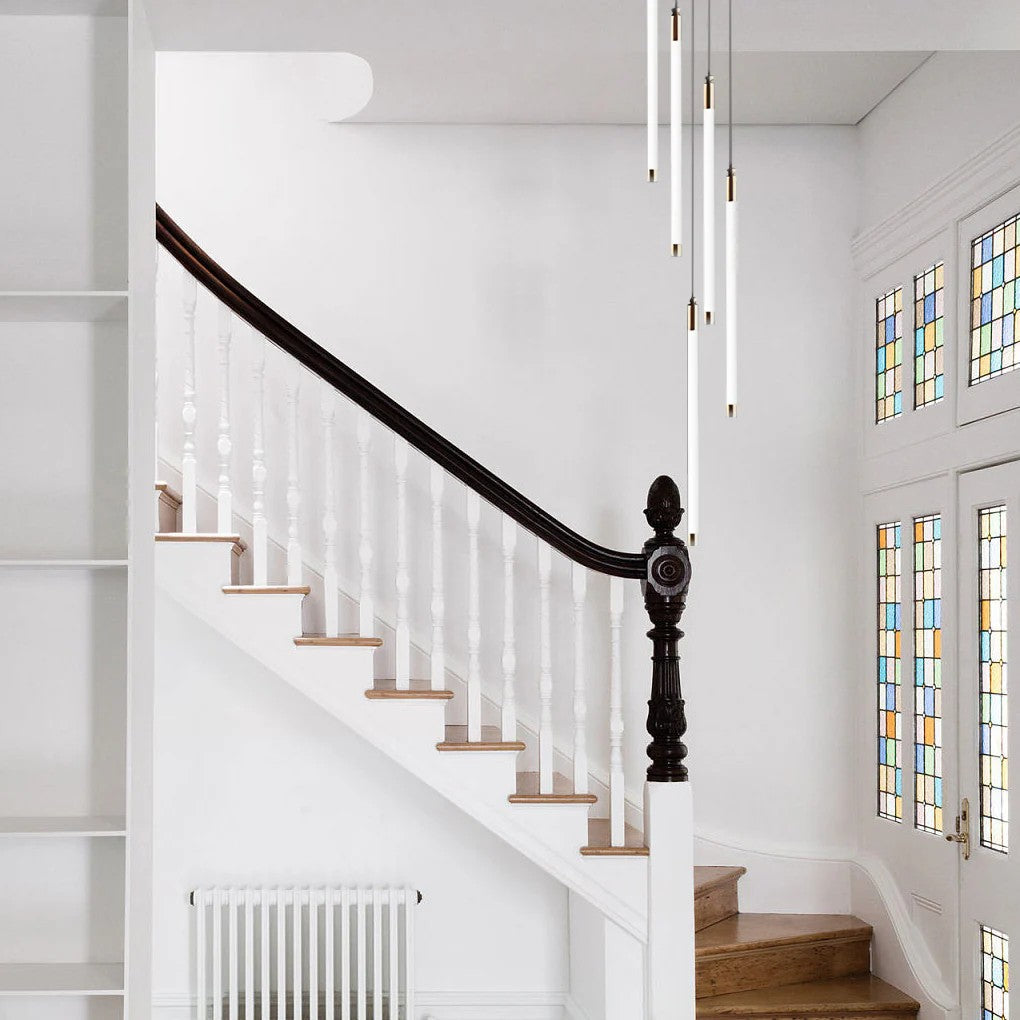

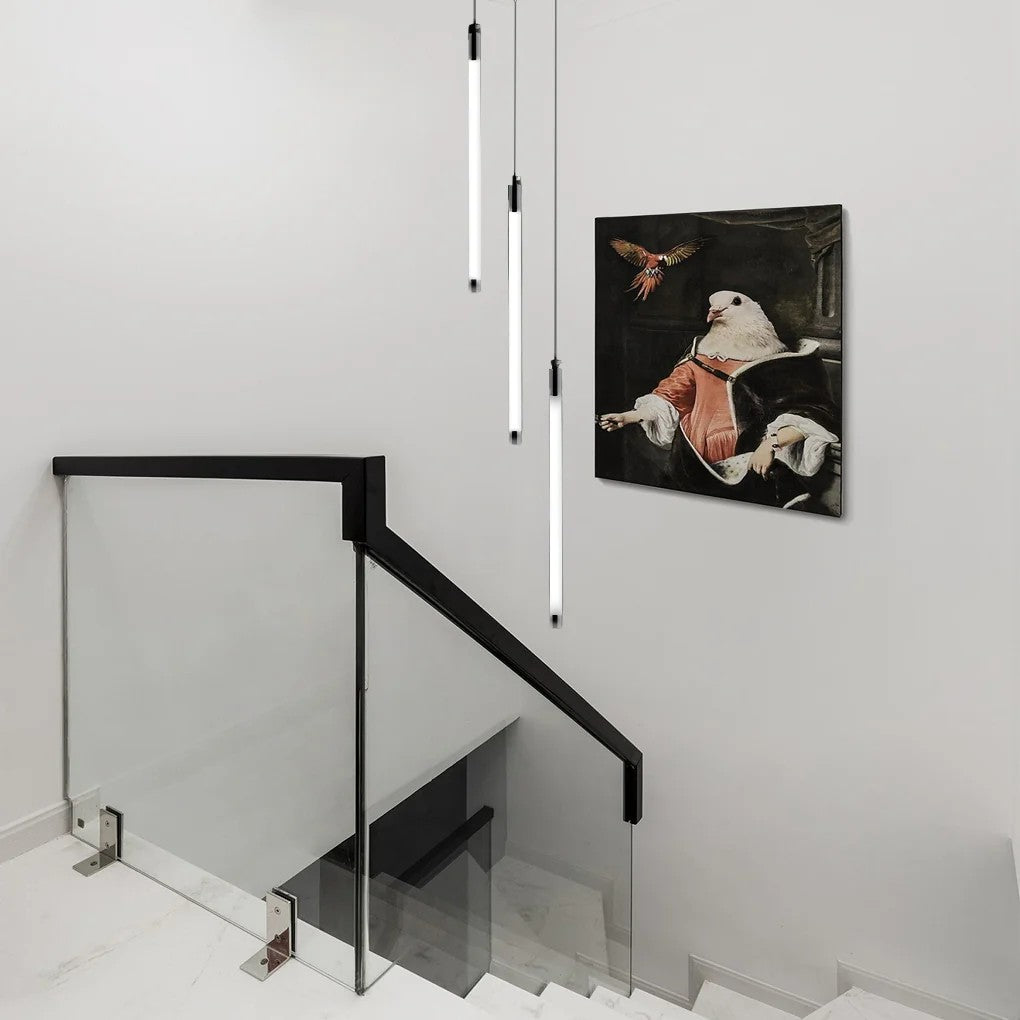

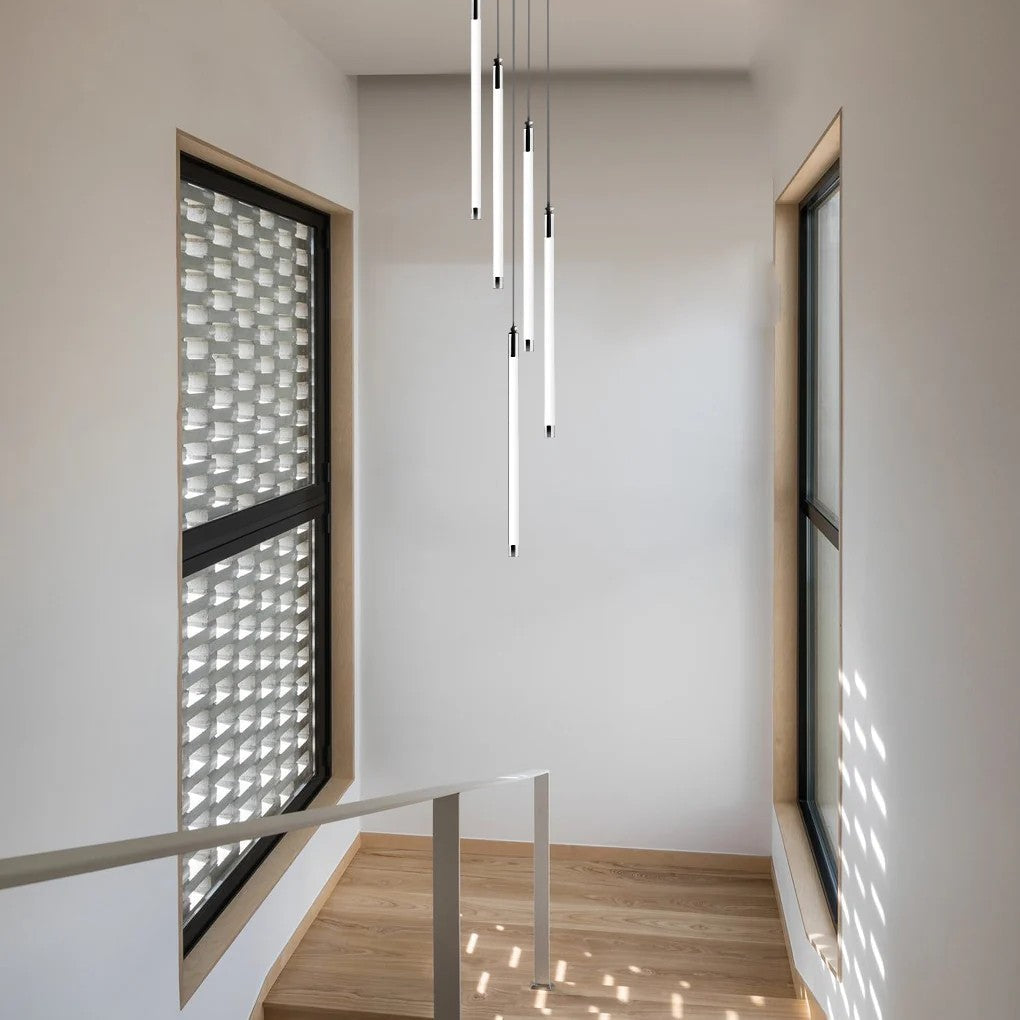

The smaller 3-Light and 5-Light versions work well in compact stairwells and taller residential corridors where a vertical lighting feature is desired without excessive visual density. The 8-Light and 12-Light versions provide a stronger architectural statement for larger staircases, foyers, and double-height residential spaces. The 18-Light, 24-Light, and 36-Light configurations are intended for substantial stair halls, atriums, large foyers, hotel interiors, and other tall spaces where a dense column of illuminated tubes can function as a primary focal point. Final tube positions should be planned according to ceiling height, staircase geometry, surrounding railings, and sightlines from both upper and lower levels.
Shipping & Warranty
- Warranty: 3-Year Limited Warranty
- Shipping: Free Shipping on All Orders
- Integrated LED Included: Yes
- White Glove Delivery: Available for larger configurations where service is available. Access requirements and any additional fees are confirmed before scheduling.
Production and delivery timing depends on the selected configuration, finish, production schedule, and shipping conditions. For current availability, configuration selection, or project-specific delivery planning, please contact our XYlight Support Team.
Installation & Notes
- Professional Installation: Hardwired installation by a licensed electrician is recommended.
- Tube Adjustment: Individual suspension lengths can be adjusted during installation to create the intended composition.
- Ceiling Planning: Confirm ceiling structure, canopy position, stair geometry, and finished tube heights before installation.
- Sloped / Vaulted Ceilings: Contact our XYlight Support Team before ordering so the mounting layout can be reviewed for the project.
- Integrated LED: The LED source is integrated into the illuminated tubes; no separate E12, E26, G9, or other replaceable bulb base is used in the standard configuration.
- Dimming: Do not specify a dimmer unless compatibility with the supplied driver has been confirmed for the production batch.
- Acrylic Care: Dust with a soft, dry, undyed cloth. Avoid abrasive cleaners and aggressive chemical products.
- Metal Care: Wipe metal components with a soft, dry cloth. Avoid abrasive cleaners and metal polish.
Need Design Guidance? Our XYlight Support Team can help confirm the appropriate light count, finish, hanging arrangement, stairwell clearance, ceiling position, voltage, and project-specific installation requirements.
